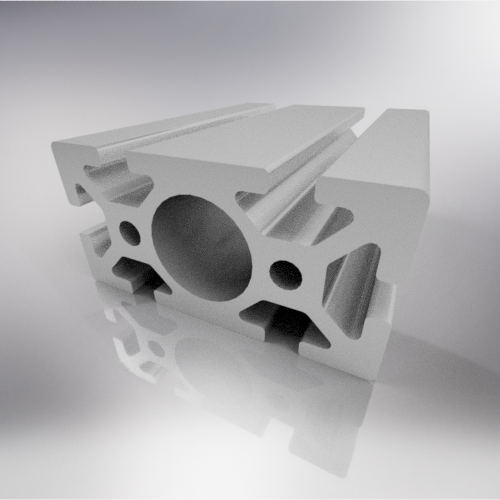

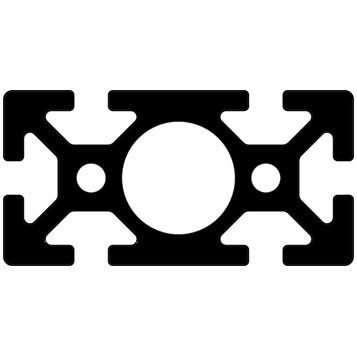

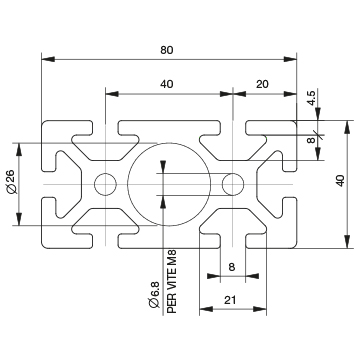

Profile 40x80 – 6 Ways Heavy Code: BPRDD0000123 Old Code: 01.4080.P6AT Serie: 40 Area: 1574 mm2 Bar length: 6100 mm Materiale: Alloy EN AW 6060 Modulo di resistenza: 23,463 Wx/cm3 – 24,597 Wy/cm3 Moment of inertia: 26,926 Jx/cm4 – 98,387 Jy/cm4 Weight: 4,250 kg/ml Cad 2D Cad 3D Profile 40×80 – 6 Ways Heavy Profile 40x80 Radiated à 90° – 2 Ways
