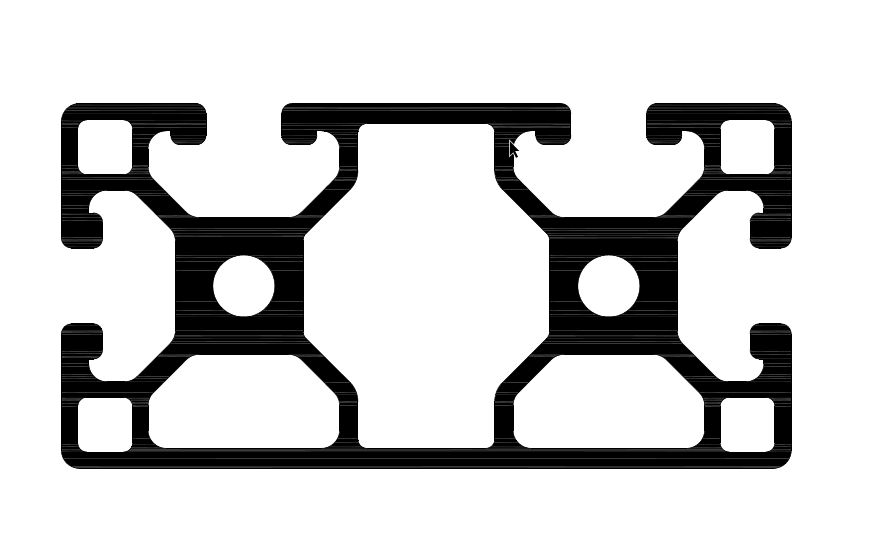

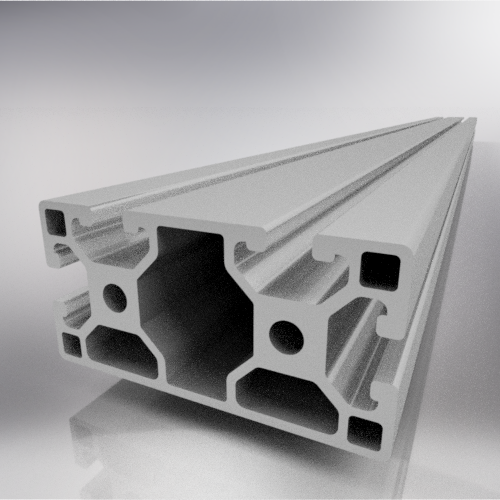

Profile 40×80 – 6 Ways Heavy

Code:

BPRDD0001211

Serie:

40

Area:

11,06 cm^2

Bar length:

6040 mm

Materiale:

Alloy EN AW 6060

Modulo di resistenza:

4,56225 Wx/cm3 – 35,877 Wy/cm3

Moment of inertia:

18,249 Jx/cm4 – 71,754 Jy/cm4

Weight:

2,986 kg/ml

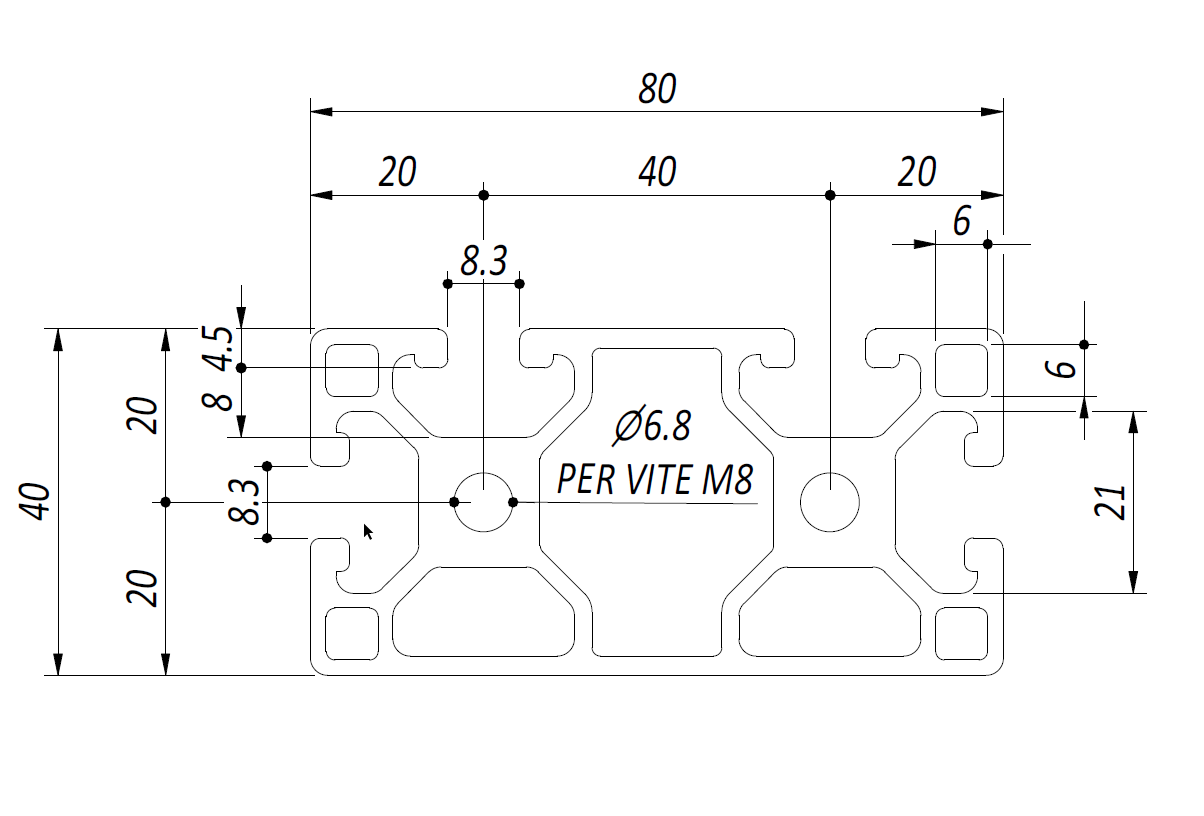

Cad 2D Cad 3D
