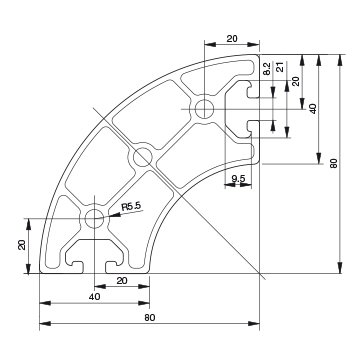

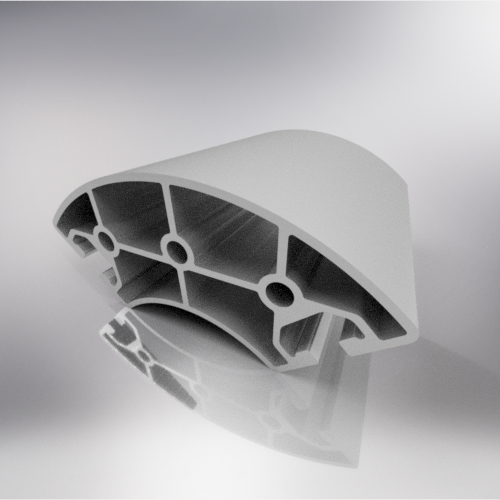

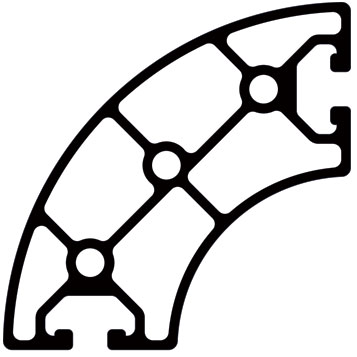

Profile 40x80 Radiated à 90° – 2 Ways Code: BPRDD0000126 Old Code: 01.4080.PR90A Serie: 40 Area: 1280 mm2 Bar length: 6100 mm Materiale: Alloy EN AW 6060 Modulo di resistenza: 17,10 Wx/cm3 – 17,10 Wy/cm3 Moment of inertia: 69,00 Jx/cm4 – 69,00 Jy/cm4 Weight: 3,63 kg/ml Cad 2D Cad 3D Profilo 40x80 – 6 cave pesante Profile 40x120 – 8 Ways light
