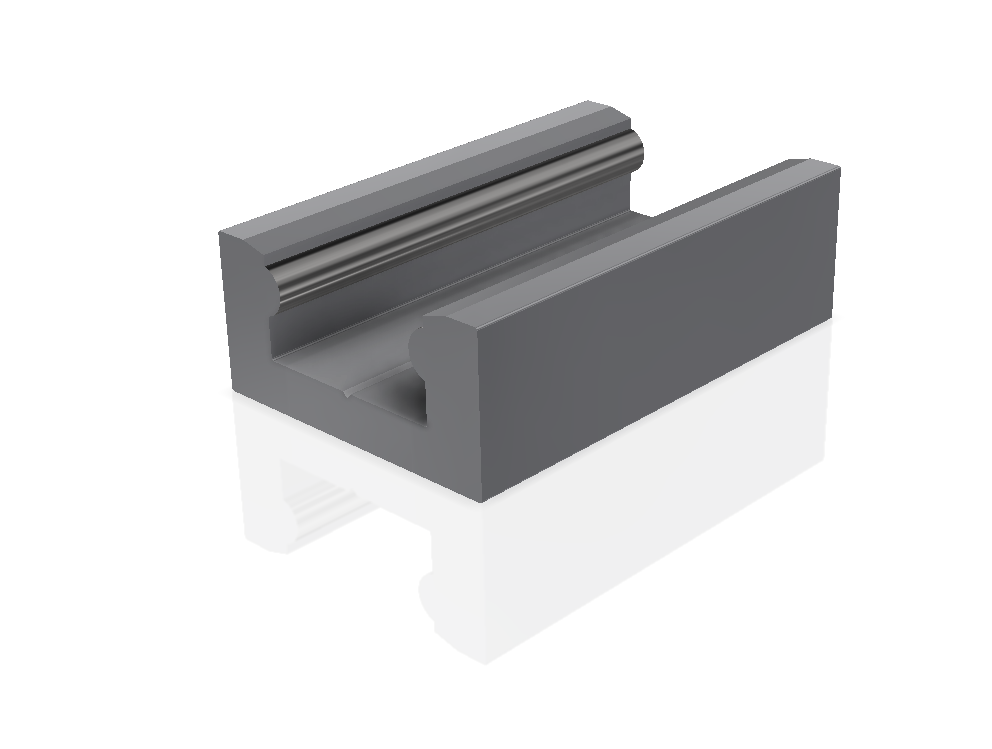

Linear guide profile - IL65
Description:

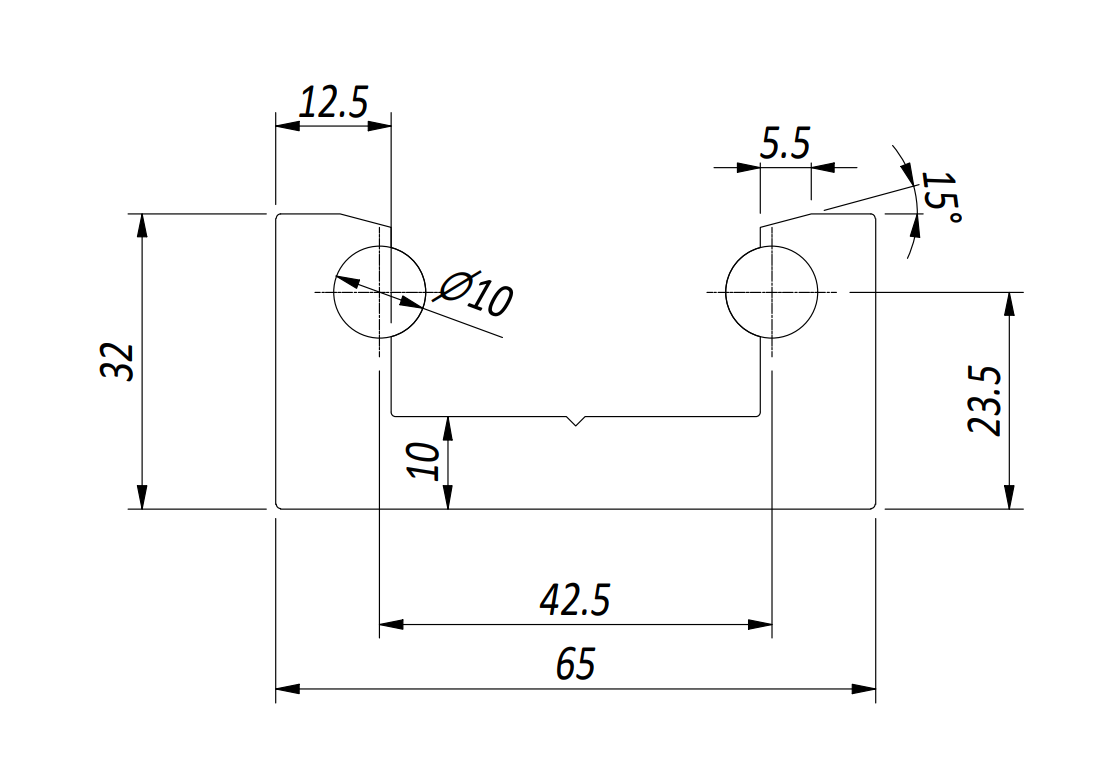

ENCUMBRANCE: y 65.00mm / z 32.00mm
Code:
BPRGD0000017
Serie:
Per Guide Lineari
Area:

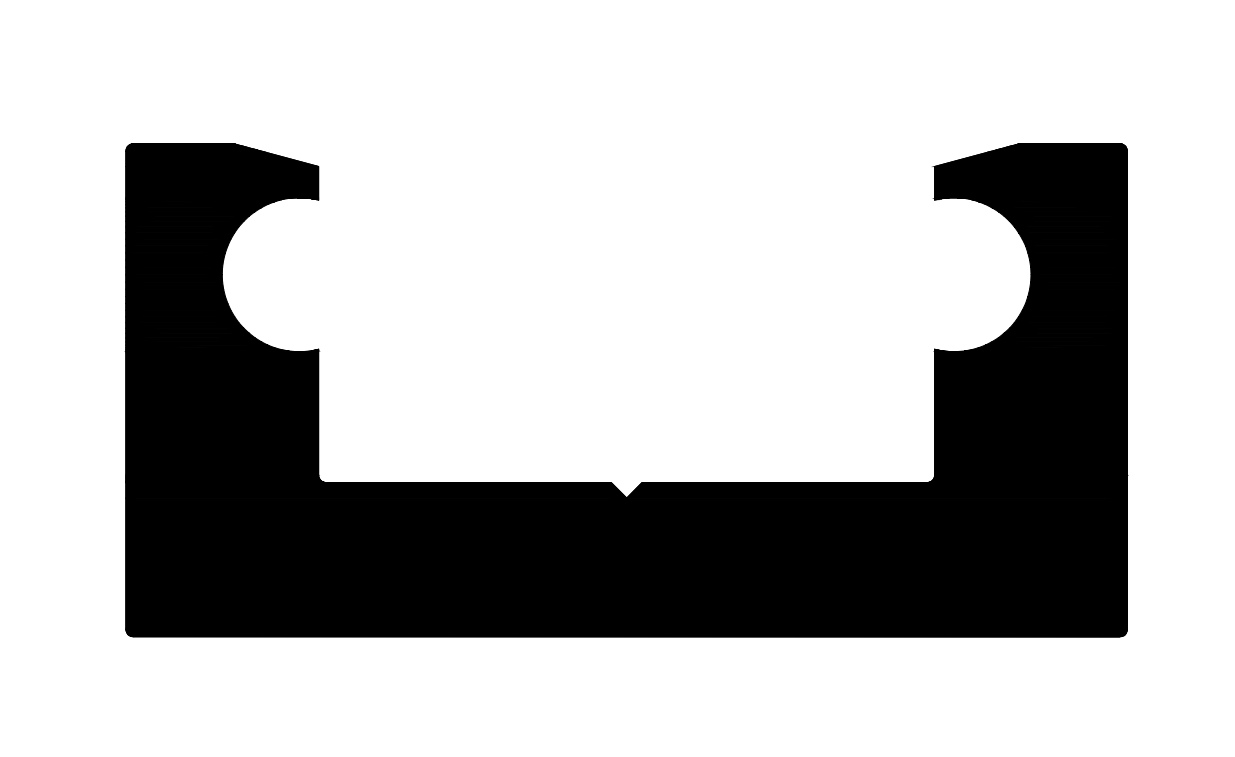

1241.99 mm2
Bar length:
6000 mm
Materiale:
LEGA EN AW 6060 C50 temp./rett./chrome
Modulo di resistenza:
19.37 Wz/cm3 – 4.58 Wy/cm3
Moment of inertia:
62.84 Jz/cm4 – 10.73 Jy/cm4
Weight:
4.18 kg/ml
