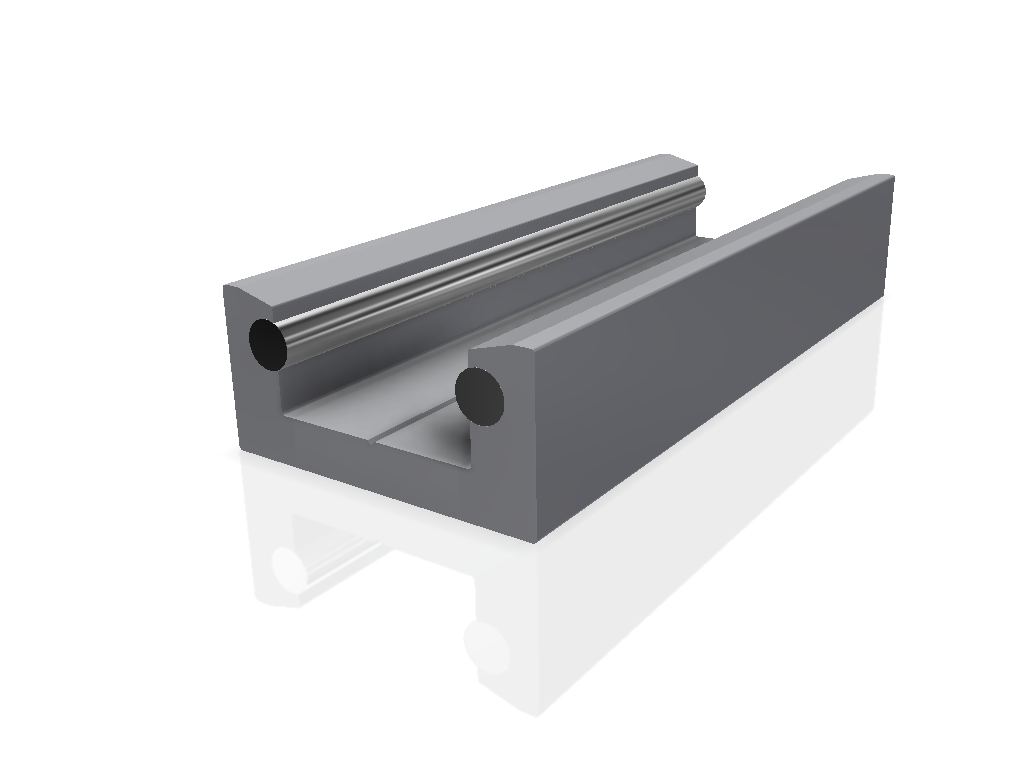

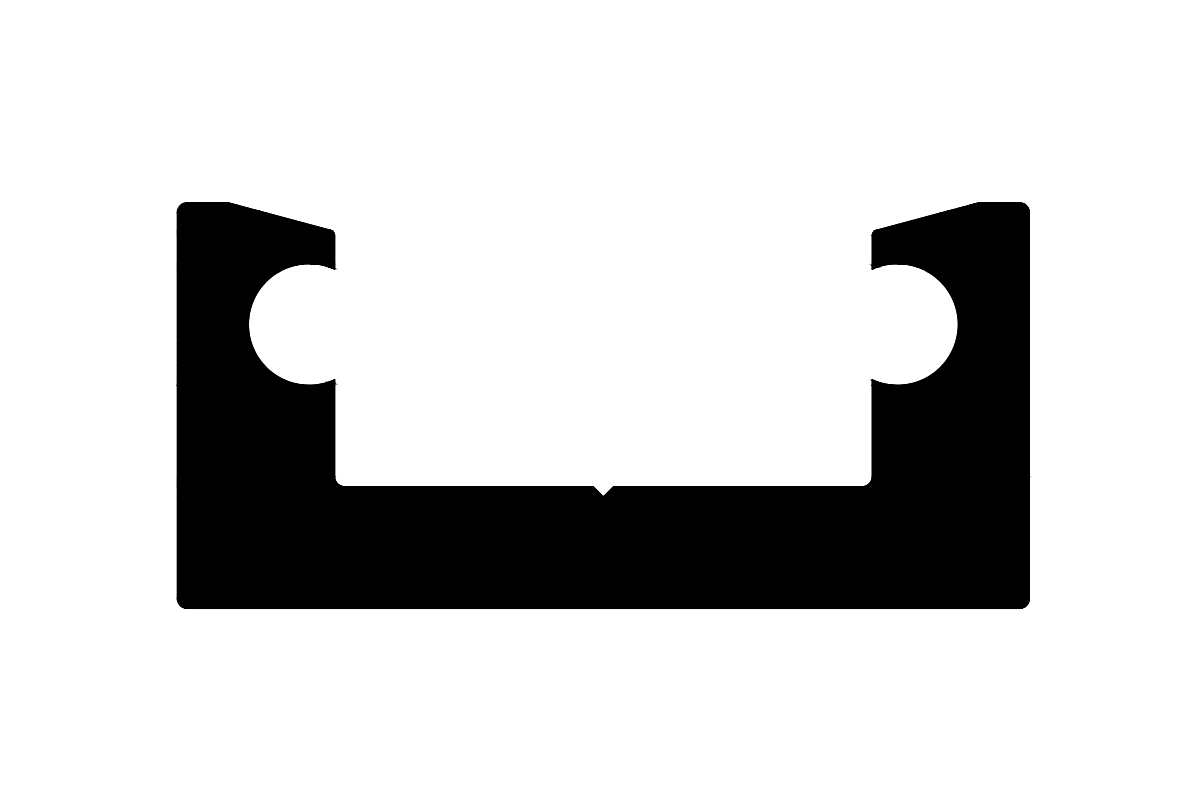

Linear guide profile - IL42
Description:

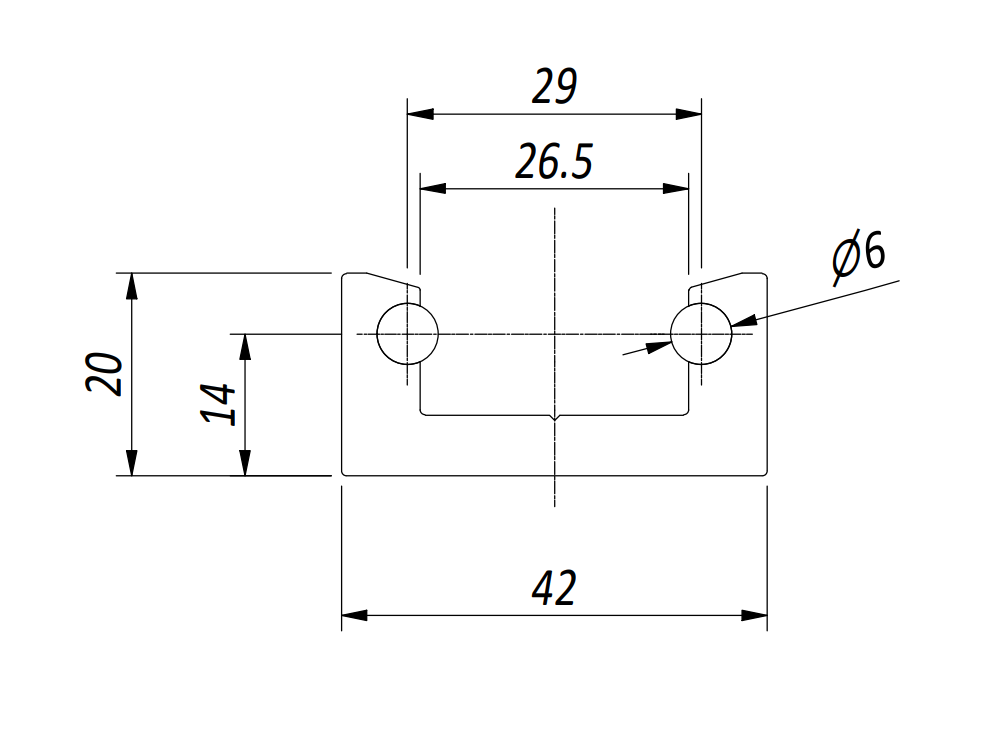

ENCUMBRANCE: y 42.00mm / z 20.00m
Code:
BPRGD0000014
Serie:
Per Guide Lineari
Area:
474.05 mm2
Bar length:
6000 mm
Materiale:
LEGA EN AW 6060 C50 temp./rett./chrome
Modulo di resistenza:
4.87 Wz/cm3 – 1.1 Wy/cm3
Moment of inertia:
10.2 Jz/cm4 – 1.55 Jy/cm4
Weight:
1.58 kg/ml
