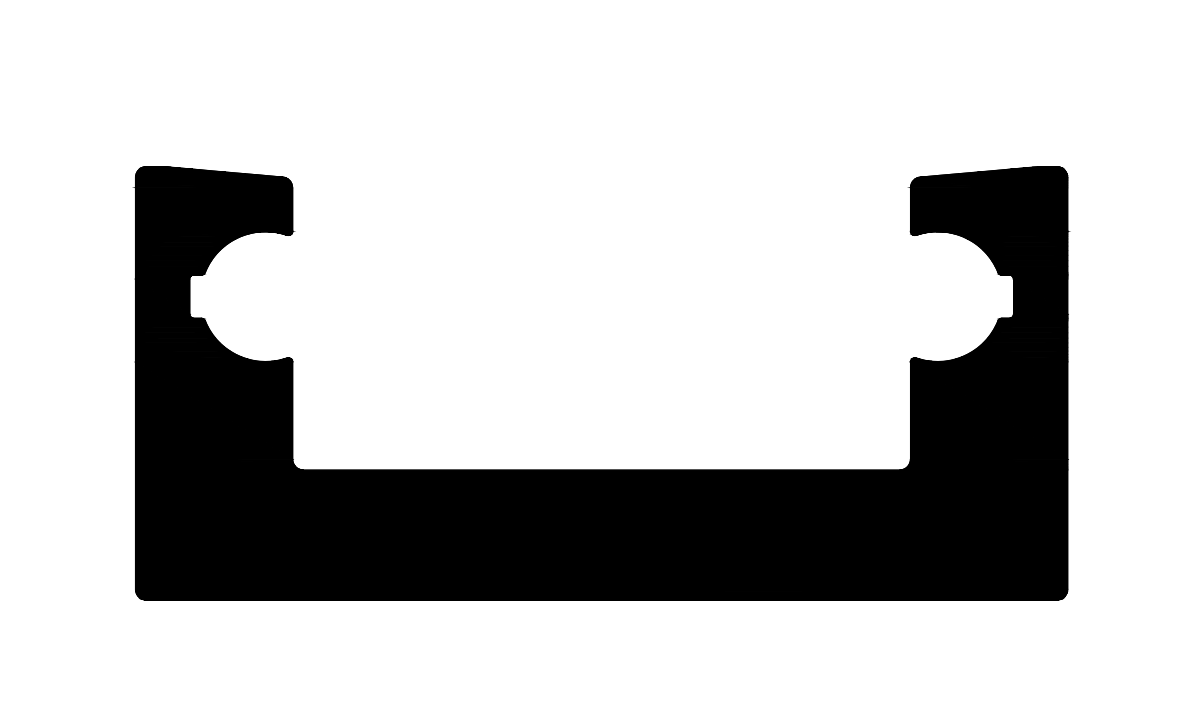

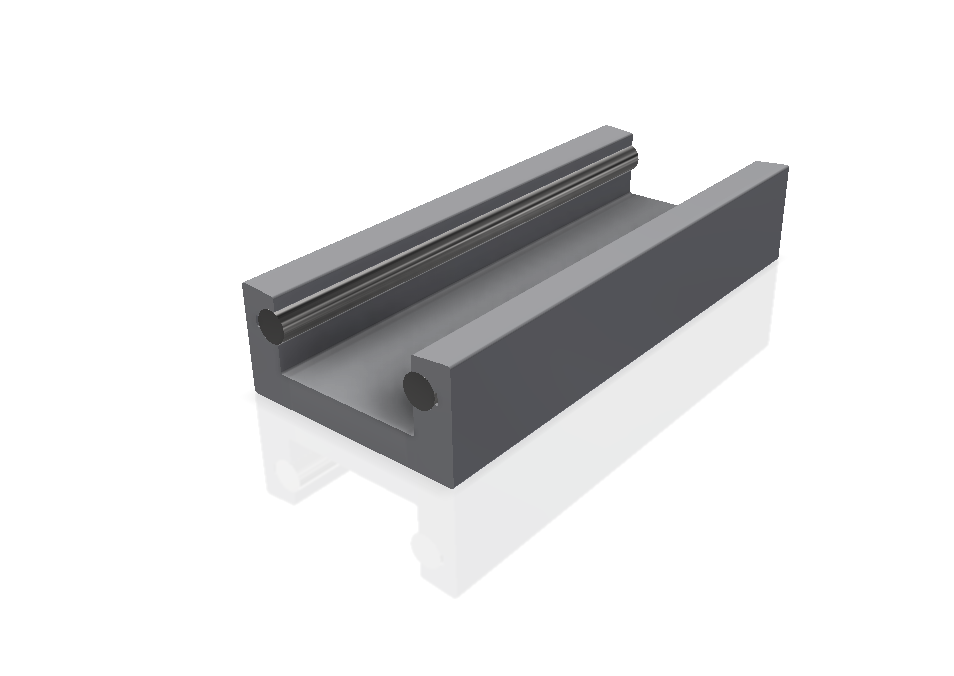

Linear guide profile - IL43
Description:

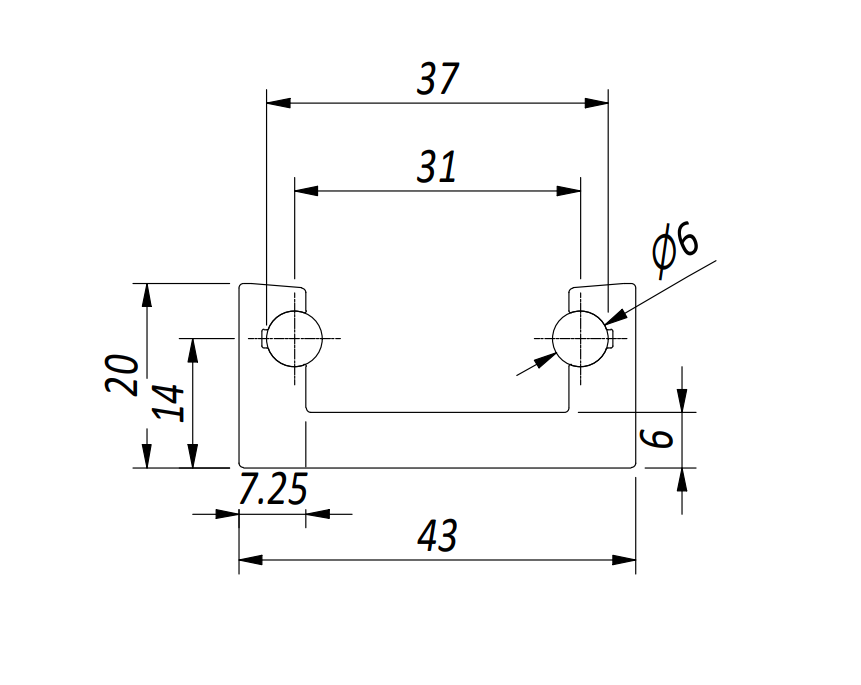

ENCUMBRANCE: y 43.00mm / z 20.00mm
Code:
BPRGD0000015
Serie:
Per Guide Lineari
Area:
468.60 mm2
Bar length:
6000 mm
Materiale:
LEGA EN AW 6060 C50 temp./rett./chrome
Modulo di resistenza:
4.94 Wz/cm3 – 1.10 Wy/cm3
Moment of inertia:
10.63 Jz/cm4 – 1.55 Jy/cm4
Weight:
1.56 kg/ml
