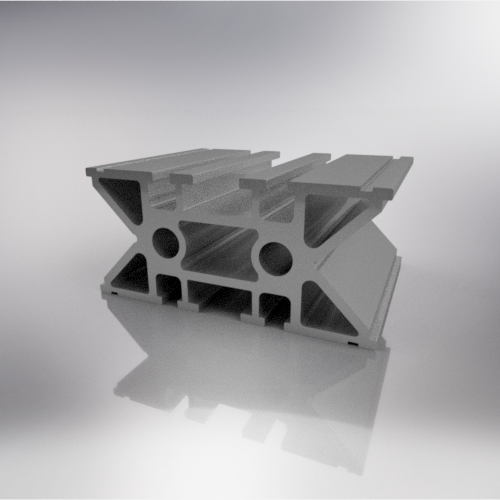

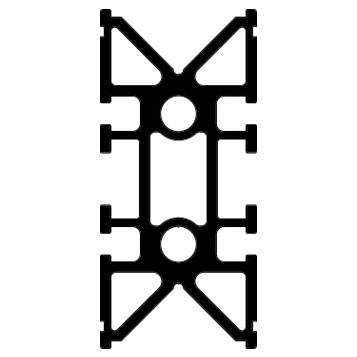

V Guide Profile 90° 60x130
Description:

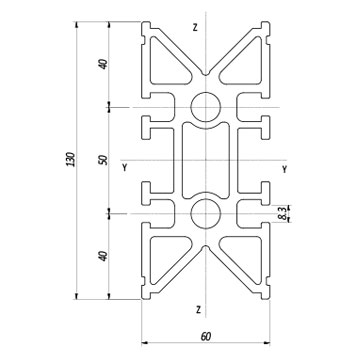

ENCUMBRANCE: y 60mm / z 130mm
Code:
BPRGD0000025
Old Code:
01.13060.V90AD
Serie:
Per Guide Lineari
Area:
2979 mm2
Bar length:
6000 mm
Materiale:
Alloy EN AW 6060
Modulo di resistenza:
55 Wz/cm3 – 28 Wy/cm3
Moment of inertia:
358 Jz/cm4 – 84 Jy/cm4
Weight:
7,49 kg/m
