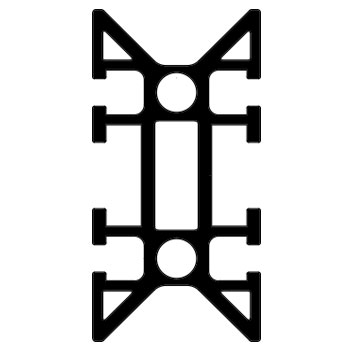

V Guide Profile 90° 50x100

Description:

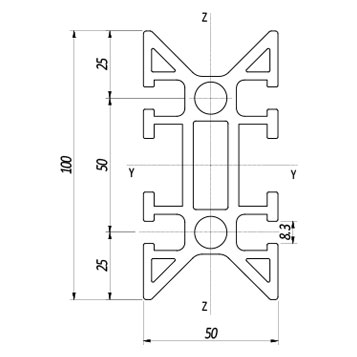

ENCUMBRANCE: y 50mm / z 100mm

Code:
BPRGD0000023
Old Code:
01.10050.V90AD
Serie:
Per Guide Lineari
Area:
1783 mm2
Bar length:
6000 mm
Materiale:
Alloy EN AW 6060
Modulo di resistenza:
28,6 Wz/cm3 – 13,9 Wy/cm3
Moment of inertia:
143 Jz/cm4 – 34,8 Jy/cm4
Weight:
4,64 kg/m

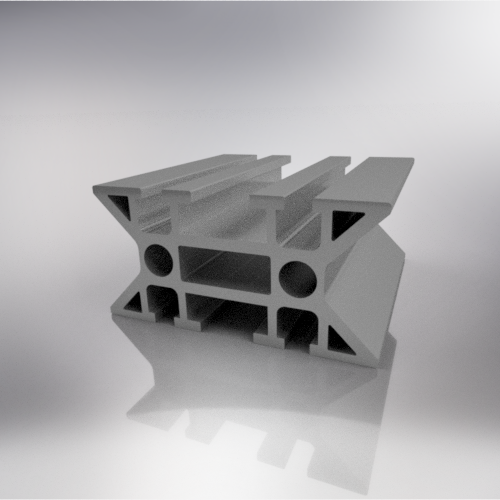

Profilo guida a V 90° 50×100 - BPRGD0000023
Profilo guida a V 90° 50×100
Profilo guida a V 90° 50×100
Cad 2D Cad 3D
