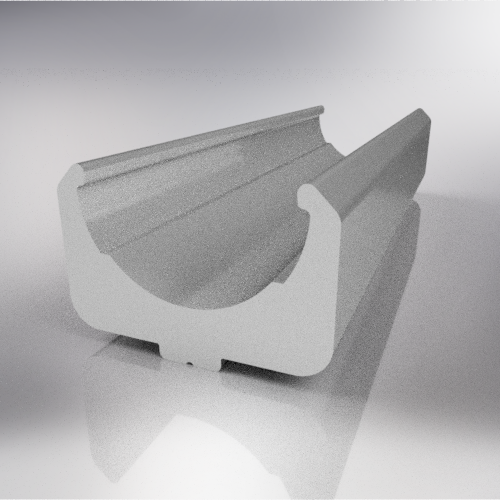

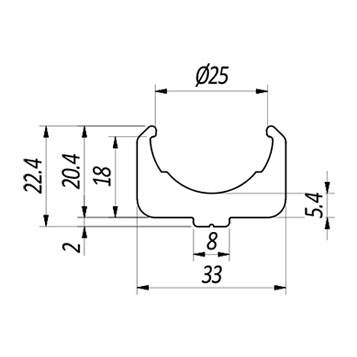

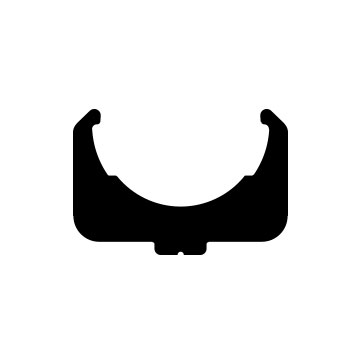

Profilo contenimento tondo 25 Code: BPRGD0000022 Old Code: 01.G25.C8AN Serie: Per Guide Lineari Area: 348 mm2 Bar length: 6100 mm Materiale: Alloy EN AW 6060 Modulo di resistenza: 0,462 Wx/cm3 – 2,585 Wy/cm3 Moment of inertia: 0,924 Jx/cm4 – 4,259 Jy/cm4 Weight: 0,939 kg/ml Cad 2D Cad 3D driven wheel linear systems-ACS32 V Guide Profile 90° 50x100
