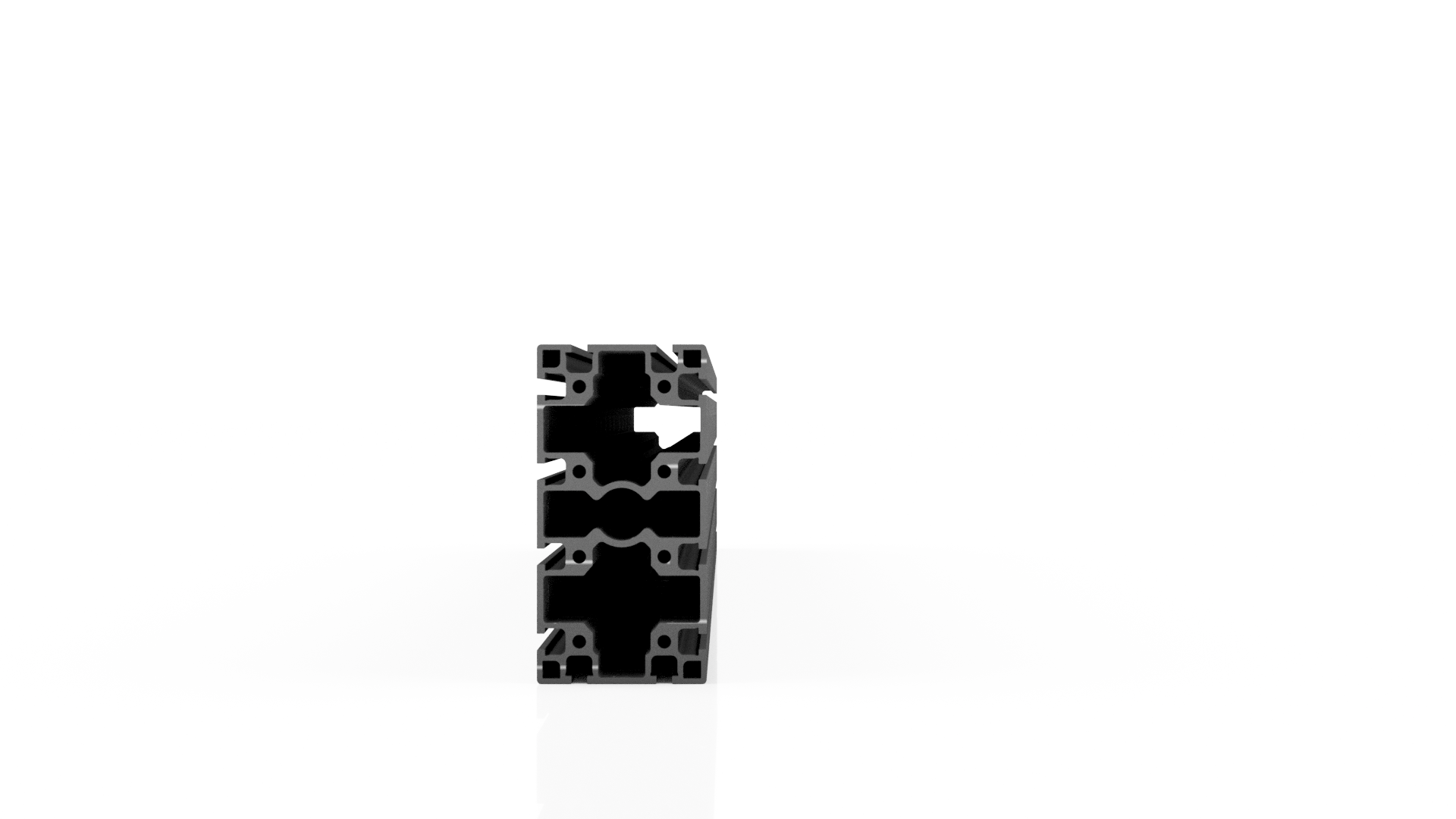

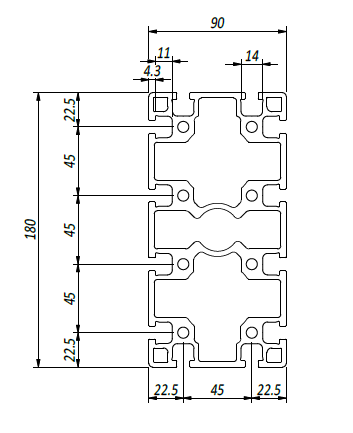

profile 90x180-12 reinforced quarries Code: BPRDD0000564 Serie: 45 Area: 4413mm2 Bar length: 6040 mm Materiale: Alloy EN AW 6060 Modulo di resistenza: 151,333 Wx/cm3 – 90,201 Wy/cm3 Moment of inertia: 1361,994 Jx/cm4 – 405,902 Jy/cm4 Weight: 11,914 kg/ml Cad 2D Cad 3D Profilo 18,5x90 – 5 cave leggero Profile 30x60 – 2 Ways radiated à 90°
