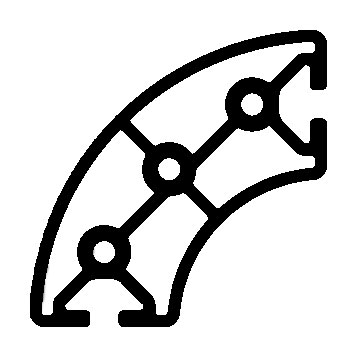

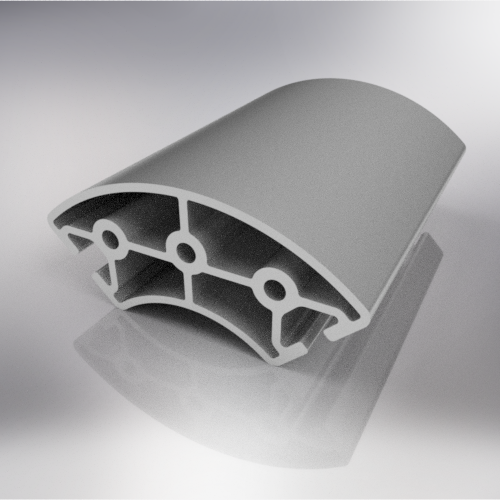

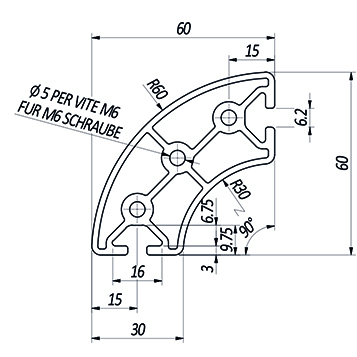

Profile 30x60 – 2 Ways radiated à 90° Code: BPRDD0000070 Old Code: 01.3060.R90A Serie: 30 Area: 748 mm2 Bar length: 6040 mm Materiale: AL 6060 Modulo di resistenza: 7,079 Wx/cm3 – 7,079 Wy/cm3 Moment of inertia: 21,591 Jx/cm4 – 21,591 Jy/cm4 Weight: 2,021 Kg/ml Cad 2D Cad 3D profile 90x180-12 reinforced quarries Profile 18,5x180 – 9 Ways Heavy
