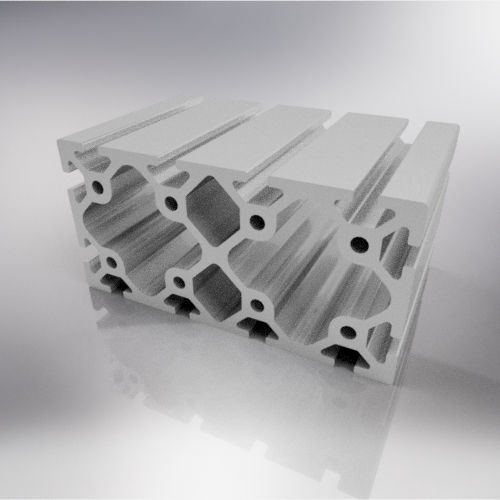

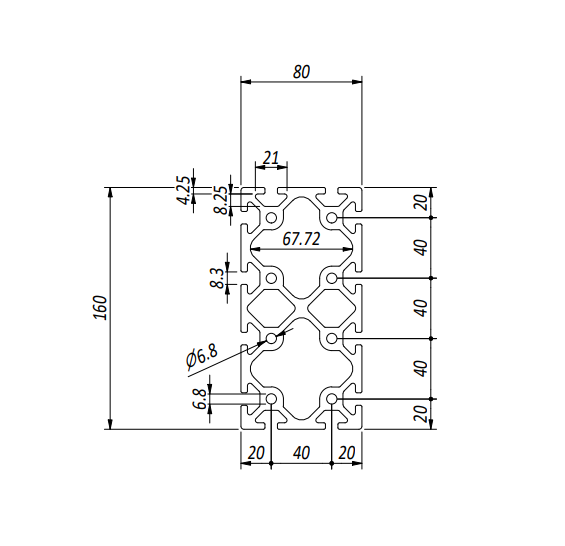

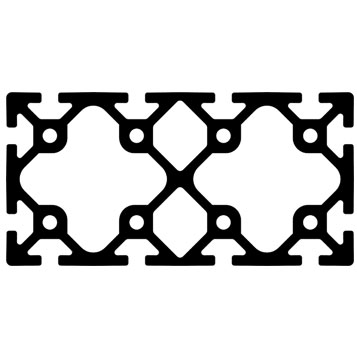

Profile 80x160 – 12 Ways heavy Code: BPRDD0000210 Old Code: 01.80160.P12A (old) Serie: 40 Area: 4554 mm2 Bar length: 6100 mm Materiale: Alloy EN AW 6060 Modulo di resistenza: 143,483 Wx/cm3 – 83,868 Wy/cm3 Moment of inertia: 1147,892 Jx/cm4 – 335,483 Jy/cm4 Weight: 12,315 kg/m Cad 2D Cad 3D Fixing Plate Serie 30-40 seat for nut Profile 120x200 – 16 Ways Heavy
