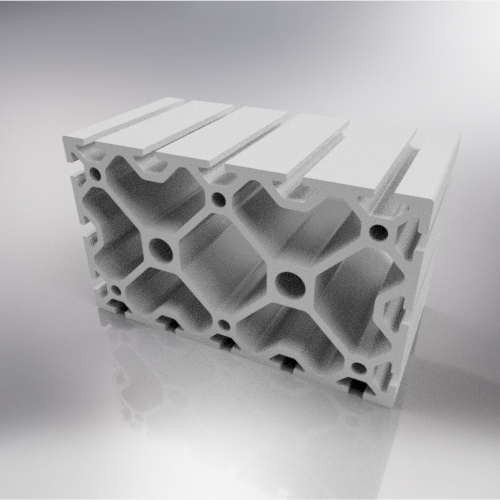

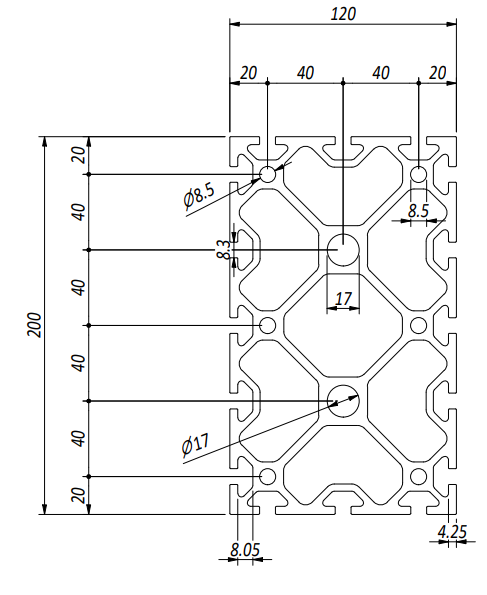

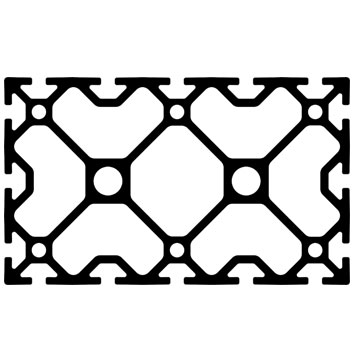

Profile 120x200 – 16 Ways Heavy Code: BPRDD0000019 Old Code: 01.120200.XP16A Serie: 40 Area: 7156 mm2 Bar length: 7050 mm Materiale: Alloy EN AW 6060 Modulo di resistenza: 302,264 Wx/cm3 – 201,453 Wy/cm3 Moment of inertia: 3022,650 Jx/cm4 – 1208,716 Jy/cm4 Weight: 19,860 kg/ml Cad 2D Cad 3D Profilo 80x160 – 12 cave pesante Profile 10,8x18,5 – 1 Way ≠ 6
