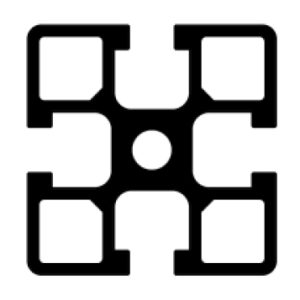

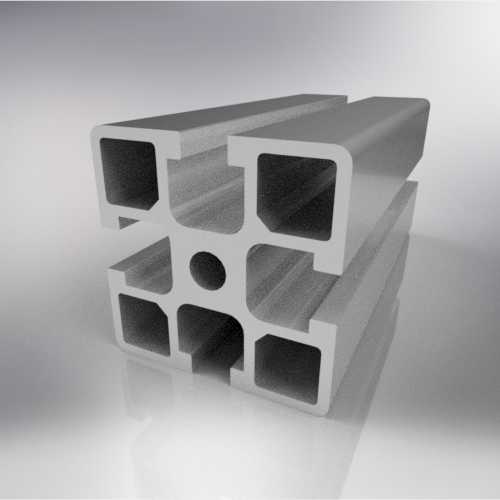

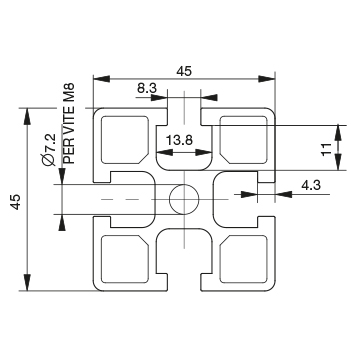

Profile 45x45 – 4 Ways Code: BPRDD0000165 Old Code: 01.4545.P4A Serie: 45 Area: 736 mm2 Bar length: 6040 mm Materiale: Alloy EN AW 6060 Modulo di resistenza: 5,88 Wx/cm3 – 5,88 Wx/cm3 Moment of inertia: 13,24 Wx/cm3 – 13,24 Wx/cm3 Weight: 1,989 kg/ml Cad 2D Cad 3D Profilo 45x45 – 4 cave Internal shaped junction 4 holes
