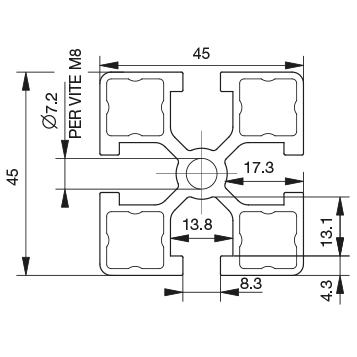

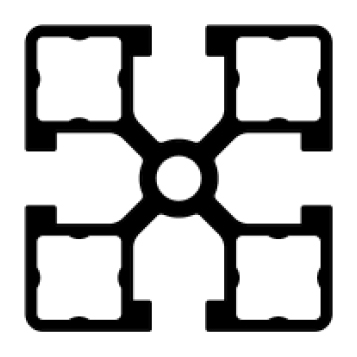

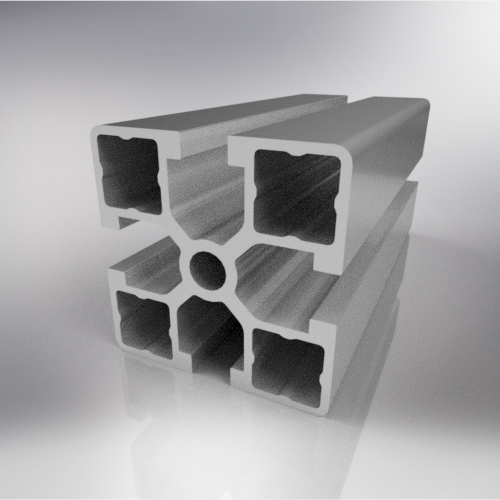

Profile 45x45 – 4 Ways

Code:

BPRDD0000162

Old Code:

01.4545.L4A

Serie:

45

Area:

567 mm2

Bar length:

6040 mm

Materiale:

Alloy EN AW 6060

Modulo di resistenza:

4,9 Wx/cm3 – 4,9 Wx/cm3

Moment of inertia:

11,04 Jx/cm4 – 11,04 Jy/cm4

Weight:

1,531 kg/ml

Profilo 45×45 – 4 cave - BPRDD0000162

Profilo 45×45 – 4 cave

Profilo 45×45 – 4 cave

Cad 2D Cad 3D
