Profile 32x90 – 5 Ways

Code:

BPRDD0000927

Old Code:

2,75 kg/ml

Serie:

45

Area:

1018 mm2

Bar length:

6040 mm

Materiale:

Alloy EN AW 6060

Modulo di resistenza:

39,551 Wx/cm3 – 2,678 Wy/cm3

Moment of inertia:

72,255 Jx/cm4 – 12,053 Jy/cm4

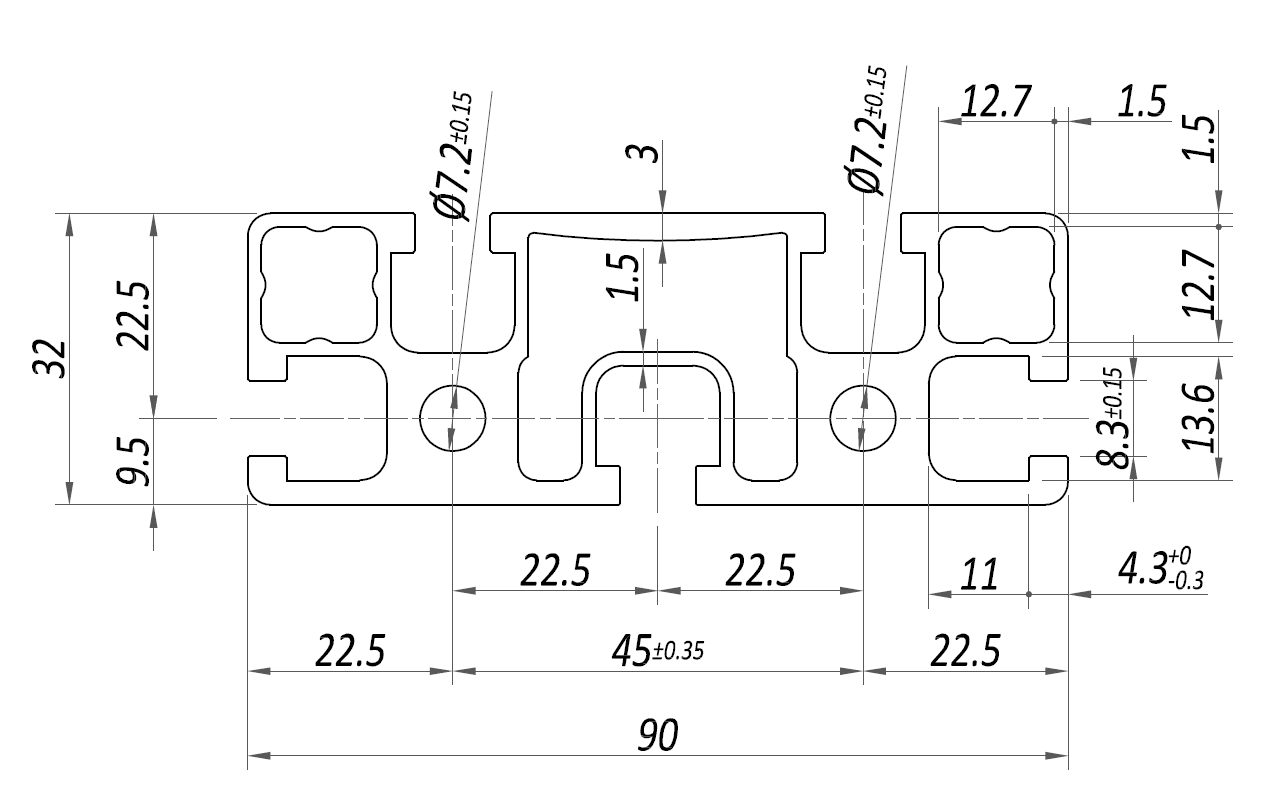

Profilo 32×90 – 5 cave - BPRDD0000927

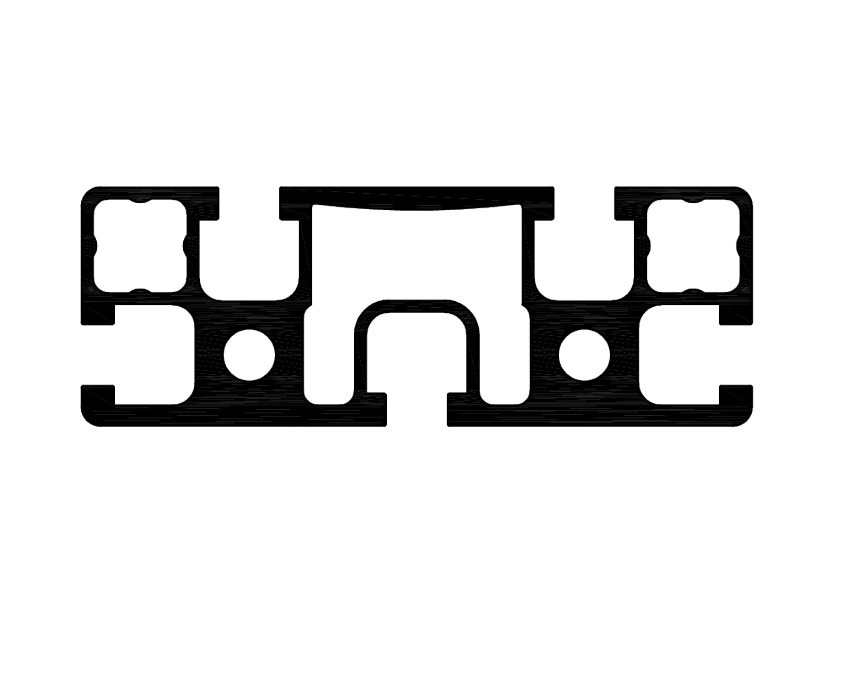

Profilo 32×90 – 5 cave

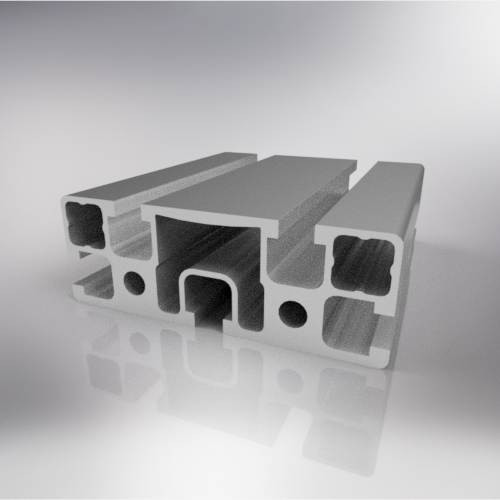

Profilo 32×90 – 5 cave

Cad 2D Cad 3D
