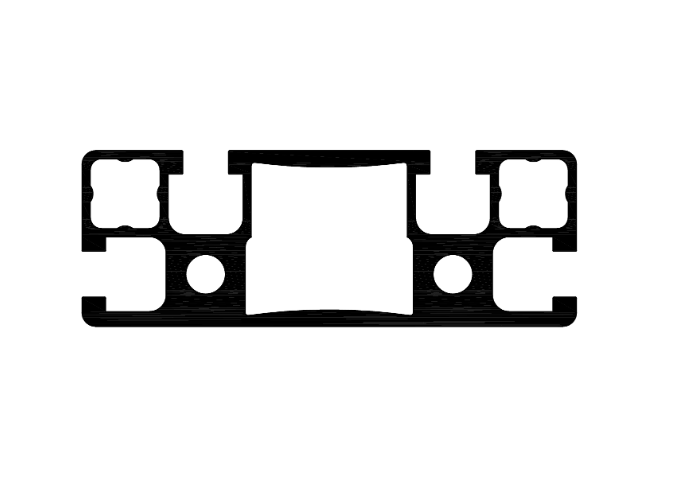

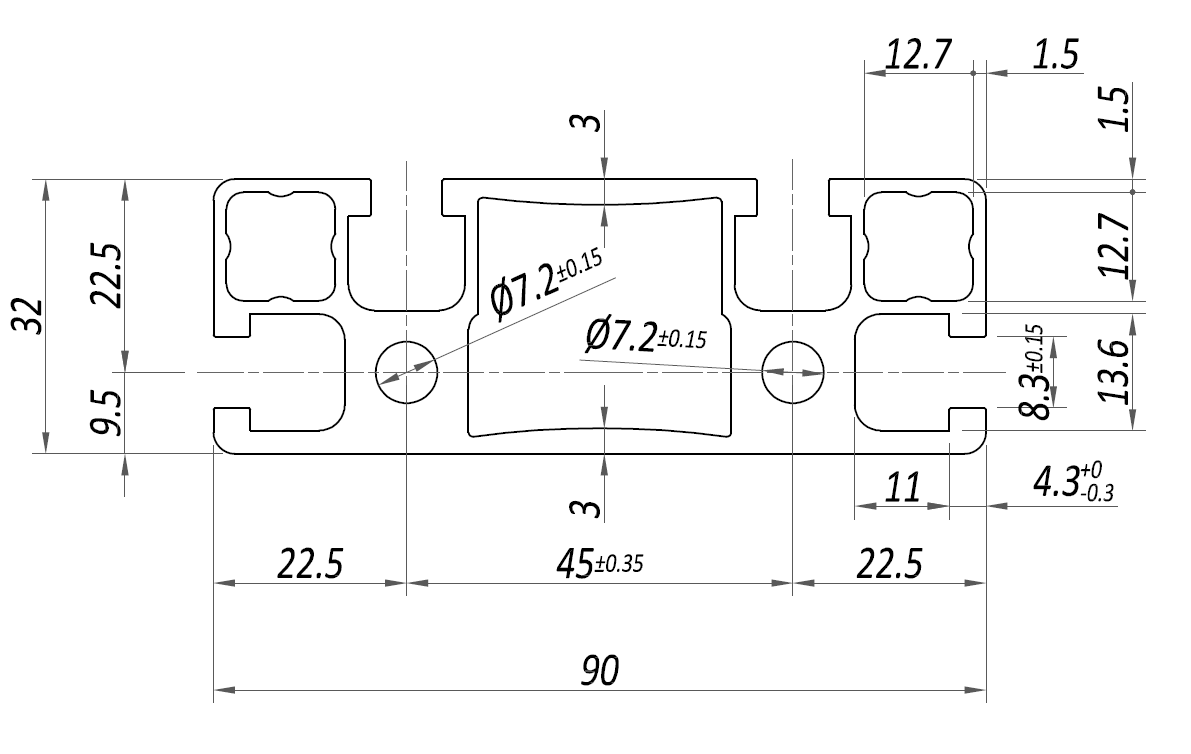

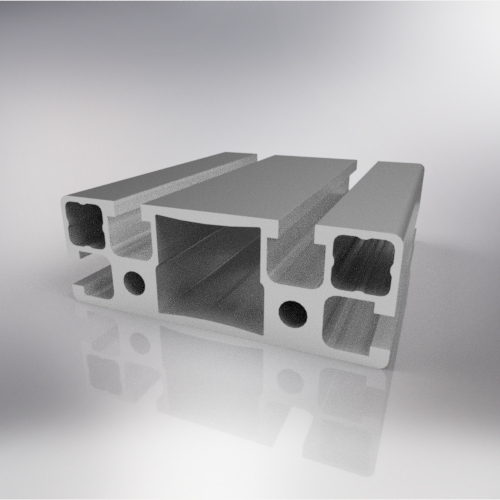

Profile 32x90 – 4 ways

Code:

BPRDD0000925

Serie:

45

Area:

974 mm2

Bar length:

6040 mm

Materiale:

Alloy EN AW 6060

Modulo di resistenza:

39,288 Wx/cm3 – 2,697 Wy/cm3

Moment of inertia:

71,886 Jx/cm4 – 12,135 Jy/cm4

Weight:

2,63 kg/ml

Profilo 32×90 – 4 cave - BPRDD0000925

Profilo 32×90 – 4 cave

Profilo 32×90 – 4 cave

Cad 2D Cad 3D
