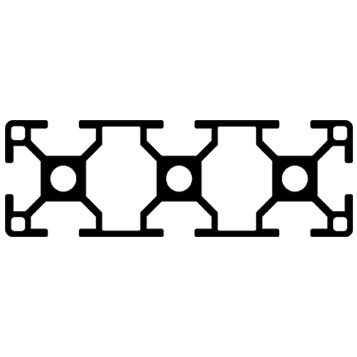

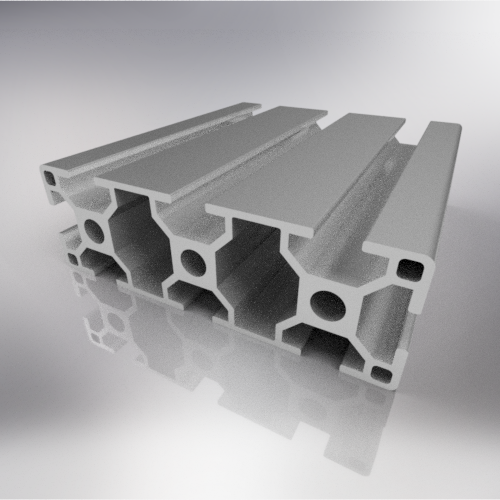

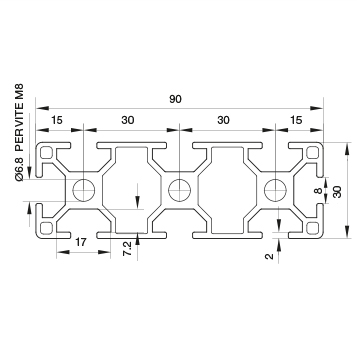

Profile 30x90 – 8 Ways Code: BPRDD0000071 Old Code: 01.3090.8A Serie: 30 Area: 788 mm2 Bar length: 6040 mm Materiale: Alloy EN AW 6060 Modulo di resistenza: 4,721 Wx/cm3 – 13,663 Wy/cm3 Moment of inertia: 7,08 Jx/cm4 – 61,49 Jy/cm4 Weight: 2,34 Kg/ml Cad 2D Cad 3D Profilo 30×60 – 6 cave Profile 20x20 – 2 ways≠ 5
