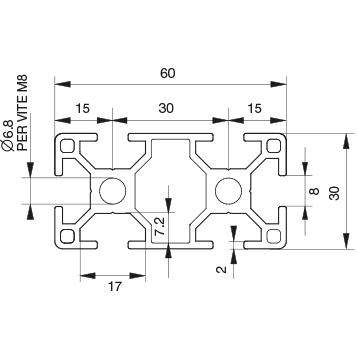

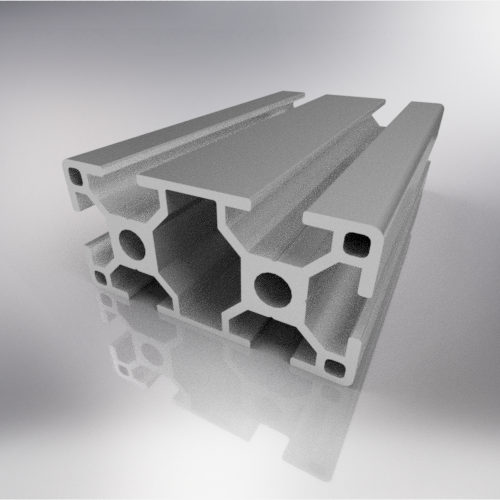

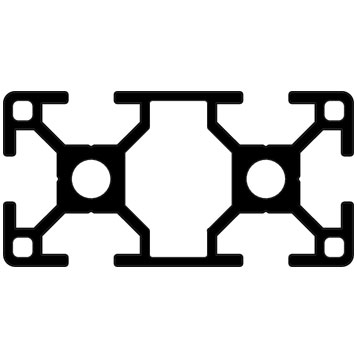

Profile 30×60 – 6 Ways Code: BPRDD0000068 Old Code: 01.3060.6A Serie: 30 Area: 542 mm2 Bar length: 6040 mm Materiale: Alloy EN AW 6060 Modulo di resistenza: 3,329 Wx/cm3 – 6,716Wy/cm3 Moment of inertia: 4,994 Jx/cm4 – 20,149 Jy/cm4 Weight: 1,490 Kg/ml Cad 2D Cad 3D Profilo 30x30 – 4 cave Profile 30x90 – 8 Ways
