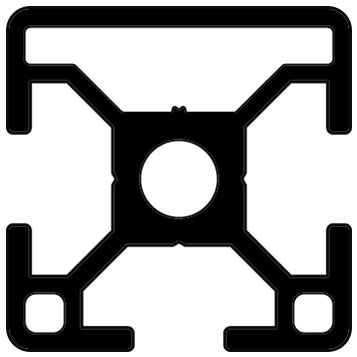

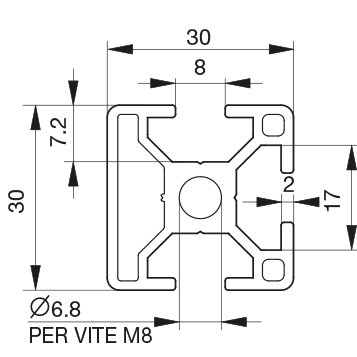

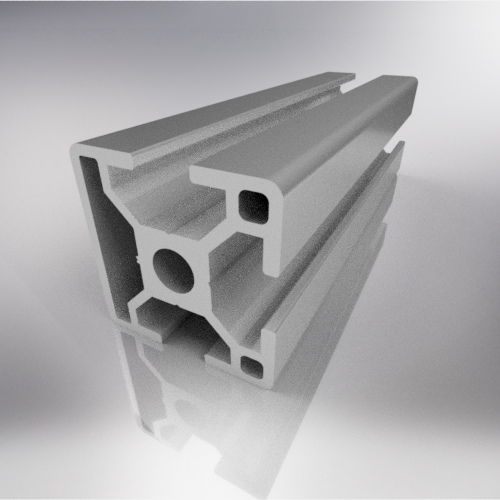

Profile 30x30 – 3 Ways

Code:
BPRDD0000060
Old Code:
01.3030.3A
Serie:
30
Area:
321 mm2
Bar length:
6040 mm
Materiale:
Alloy EN AW 6060
Modulo di resistenza:
1,942 Wx/cm3 – 1,827
Moment of inertia:
2,926 Jx/cm4 – 2,741 Jy/cm4
Weight:
0,867 Kg/ml
Profilo 30×30 – 3 cave - BPRDD0000060
Profilo 30×30 – 3 cave
Profilo 30×30 – 3 cave
Cad 2D Cad 3D
