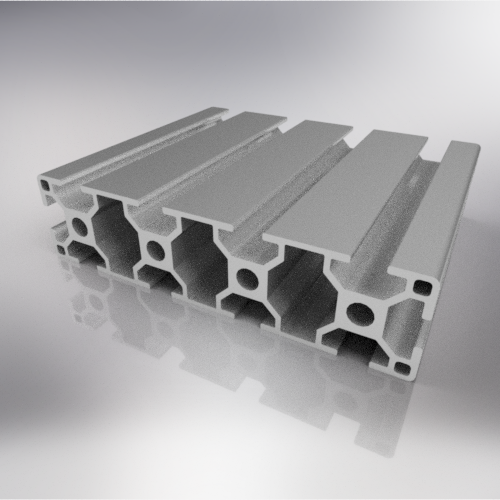

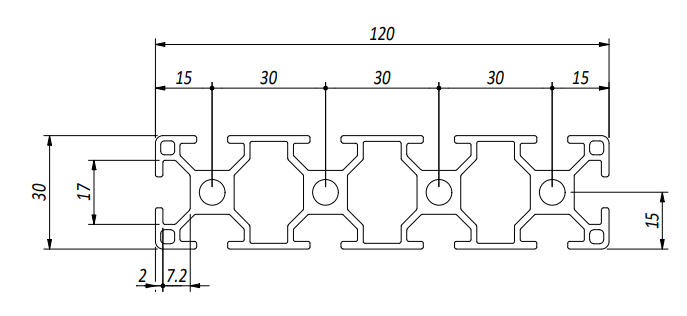

Profile 30x120 – 10 Ways Code: BPRDD0000621 Serie: 30 Area: 1025 mm2 Bar length: 6040 mm Materiale: AI 6060 Modulo di resistenza: 6,176 Wx/cm3 – 23,16 Moment of inertia: 9,264 Jx/cm4 – 138,94 Jx/cm4 Weight: 2,77 Kg/ml Cad 2D Cad 3D Profilo 30x30 – 3 cave Profile 30x30 – 4 Ways
