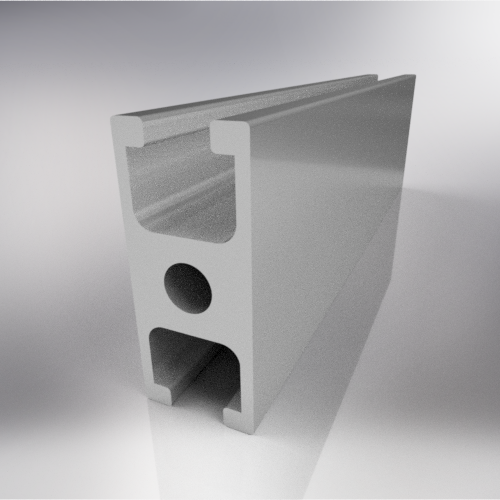

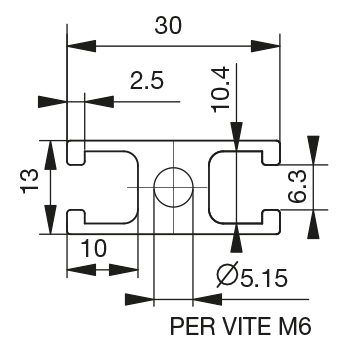

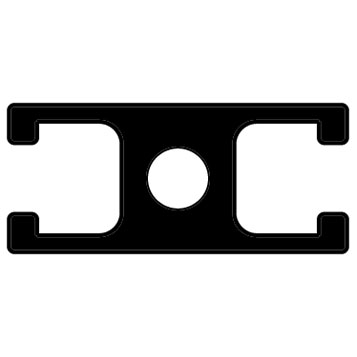

Profile 13x30 – 2 Way ≠ 6 Code: BPRDD0000040 Old Code: 01.1330.2A Serie: 45 Area: 189 mm2 Bar length: 6100 mm Materiale: Alloy EN AW 6060 Modulo di resistenza: 0,630 Wx/cm3 – 0,718 Wy/cm3 Moment of inertia: 0,415 Jx/cm4 – 1,077 Jy/cm4 Weight: 0,530 kg/ml Cad 2D Cad 3D Profilo 13x22,5 – 1 cava ≠ 6 Fixing Plate Serie 30-45
