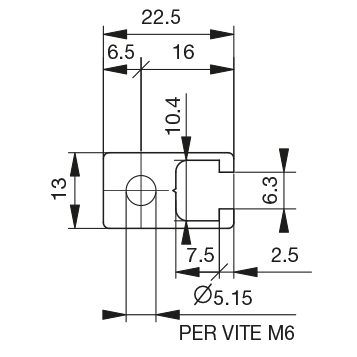

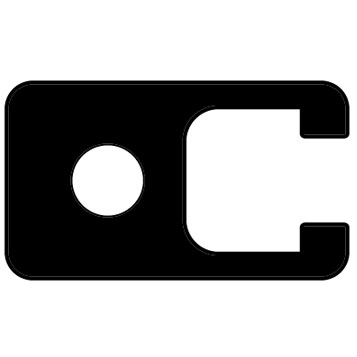

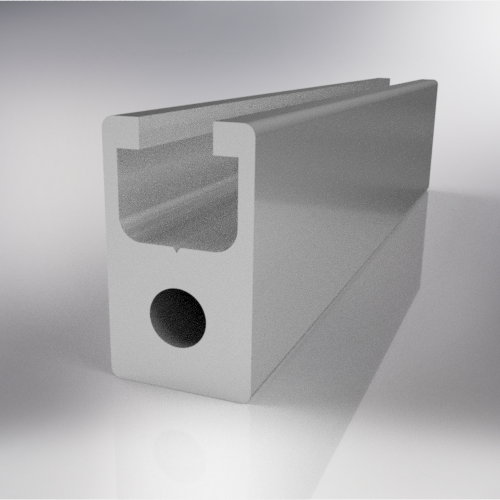

Profile 13x22,5 – 1 Way ≠ 6 Code: BPRDD0000023 Old Code: 01.1322,5.1A Serie: 45 Area: 158 mm2 Bar length: 6040 mm Materiale: Alloy EN AW 6060 Modulo di resistenza: 0,529 Wx/cm3 – 0,500 Wy/cm3 Moment of inertia: 0,344 Jx/cm4 – 0,687 Jy/cm4 Weight: 0,478 kg/ml Cad 2D Cad 3D Profilo 10,8x18,5 – 1 cava ≠ 6 Profile 13x30 – 2 Way ≠ 6
