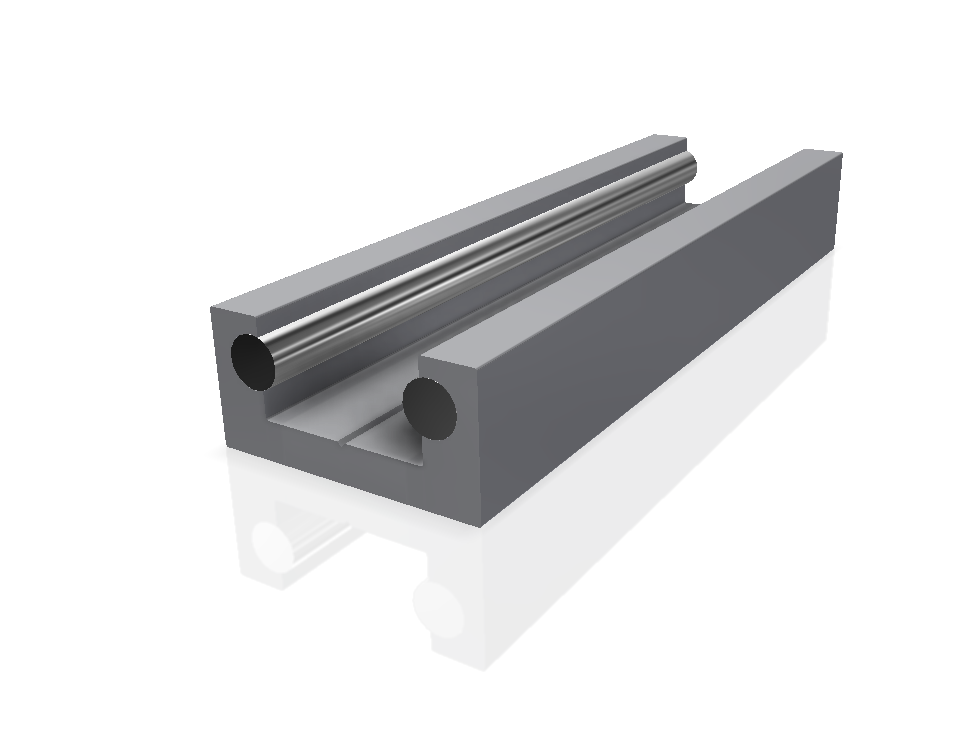

Linear guide profile - IL32
Description:

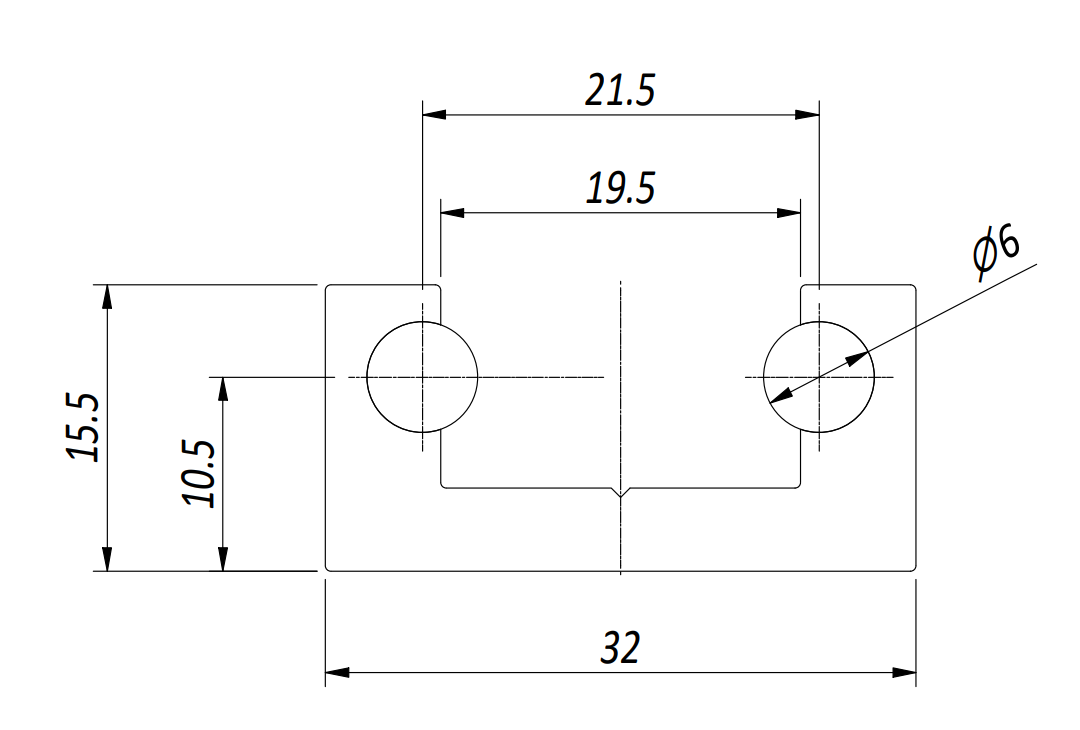

ENCUMBRANCE: y 32.00mm / z 15.50mm
Code:
BPRGD0000013
Serie:
Per Guide Lineari
Area:

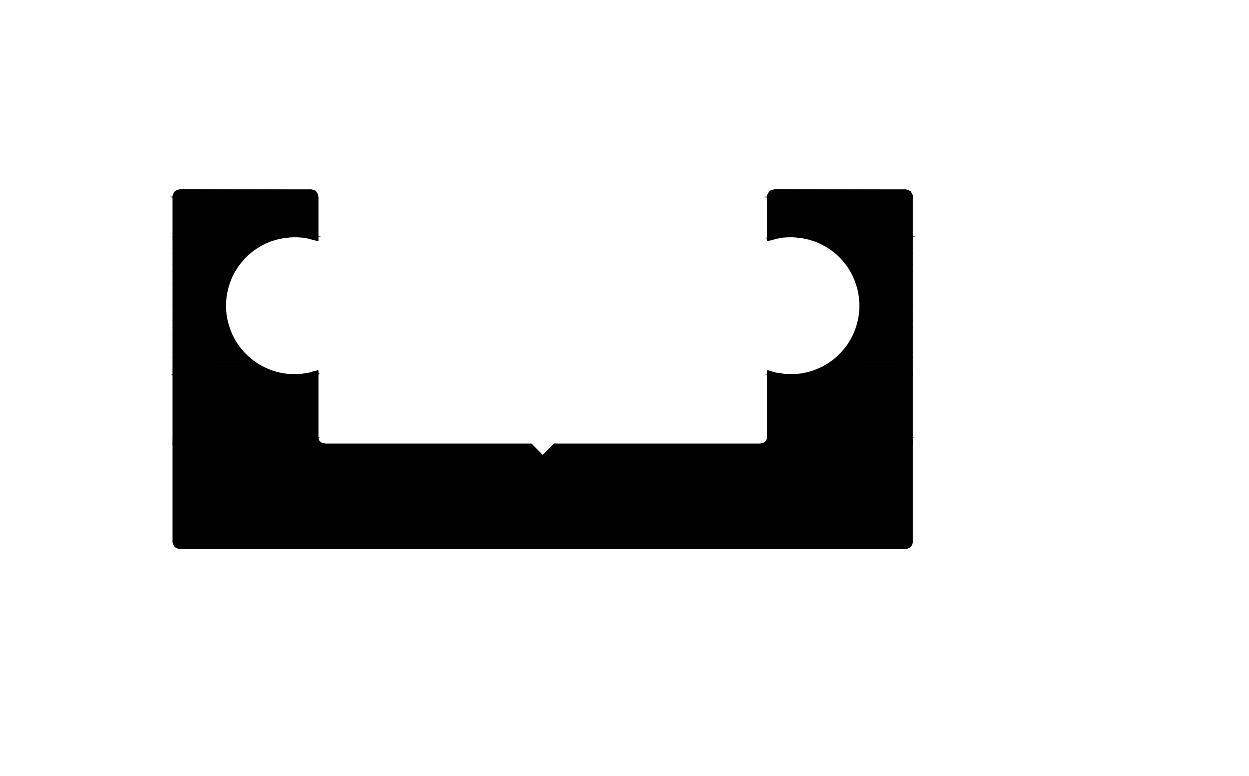

297.67 mm2
Bar length:
6000 mm
Materiale:
LEGA EN AW 6060 C50 temp./rett./chrome
Modulo di resistenza:
2.3 Wz/cm3 – 0.59 Wy/cm3
Moment of inertia:
3.68 Jz/cm4 – 0,62 Jy/cm4
Weight:
1.10 kg/ml
