Linear guide profile - ACS52
Description:

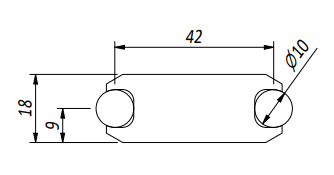

ENCUMBRANCE : y 52.00mm / z 18.00mm
Code:
BPRGD0000058
Serie:
Per Guide Lineari
Area:
849,83 mm2
Bar length:
6000 mm
Materiale:
LEGA EN AW 6060 C50 temp./rett./chrome
Modulo di resistenza:
6,13 Wz/cm3 – 2,36 Wy/cm3
Moment of inertia:
16,09 Jz/cm4 – 2,13 Jy/cm4
Weight:
3,08 kg/ml
