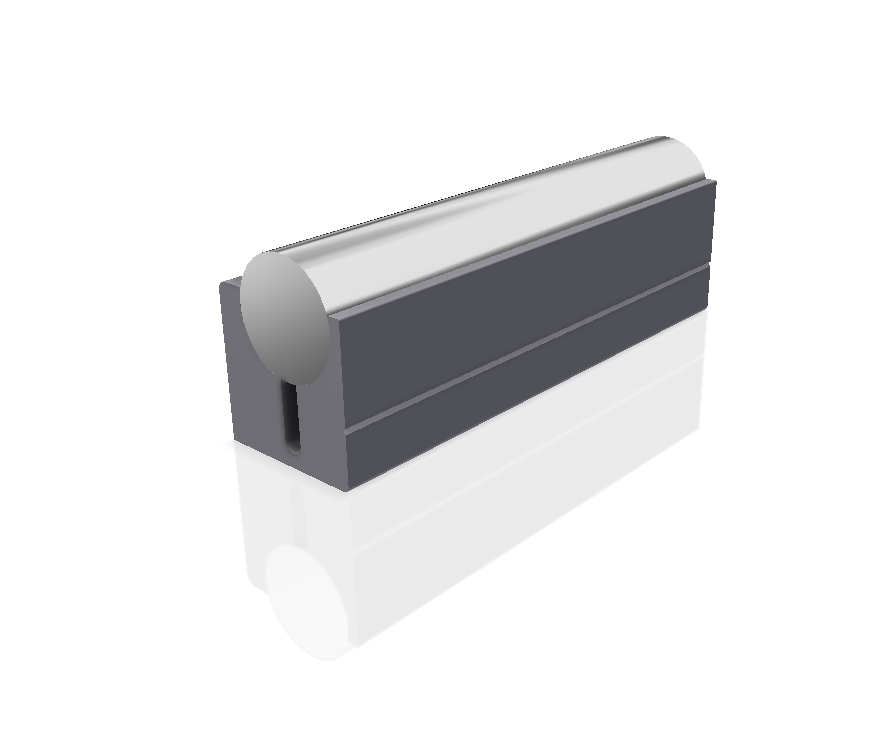

Linear guide profile - GS20
Description:

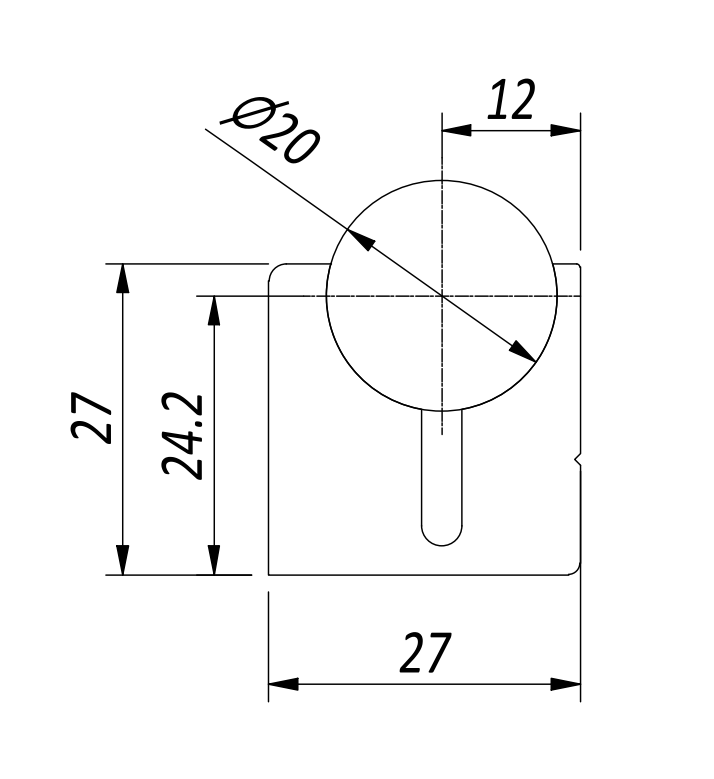

ENCUMBRANCE: y 34.20mm / z 27.00mm
Code:
BPRGD0000069
Serie:
Per Guide Lineari
Area:

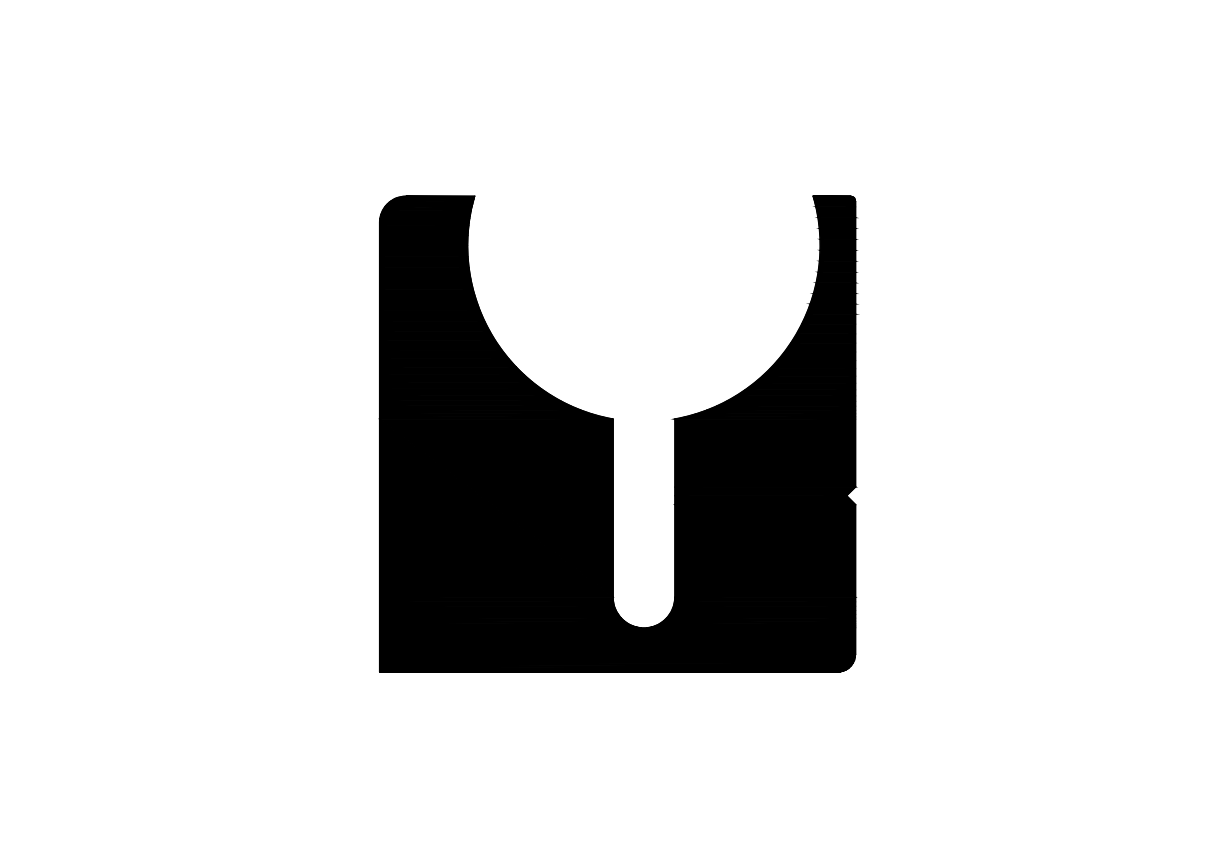

790.04 mm2
Bar length:
6000 mm
Materiale:
LEGA EN AW 6060 C50 temp./rett./chrome
Modulo di resistenza:
2.76 Wz/cm3 – 3.07 Wy/cm3
Moment of inertia:
6.67 Jz/cm4 – 4.60 Jy/cm4
Weight:
3.76 kg/ml
