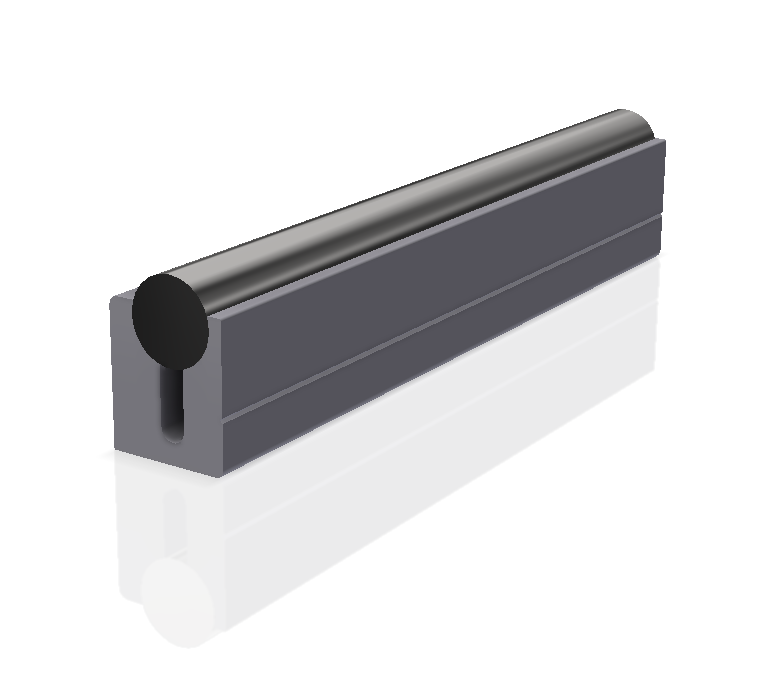

Linear guide profile - GS10
Description:

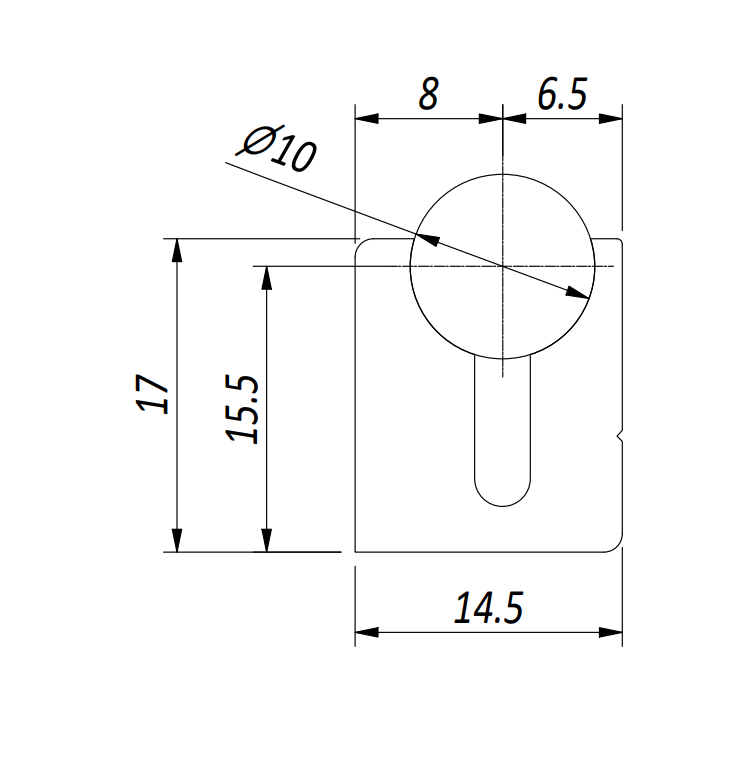

ENCUMBRANCE: y 20.5mm / z 14.5mm
Code:
BPRGD0000068
Serie:
Per Guide Lineari
Area:

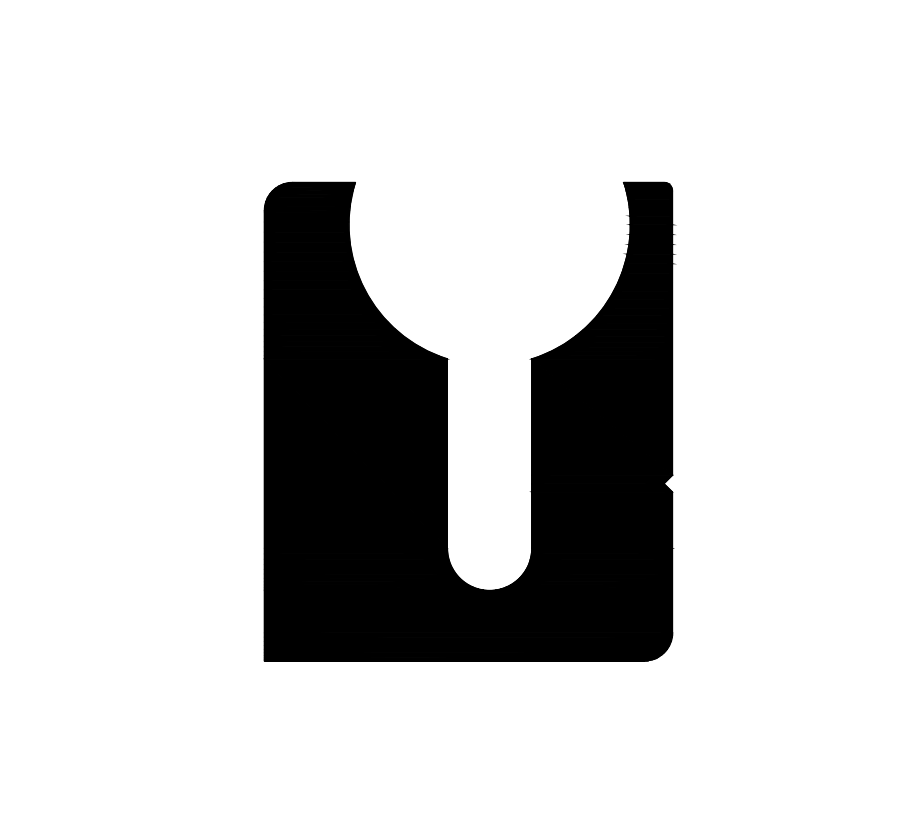

247.20 mm2
Bar length:
6000 mm
Materiale:
LEGA EN AW 6060 C50 temp./rett./chrome
Modulo di resistenza:
5.06 Wz/cm3 – 5.48 Wy/cm3
Moment of inertia:
0.783 Jz/cm4 – 0.438 Jy/cm4
Weight:
1.08 kg/ml
