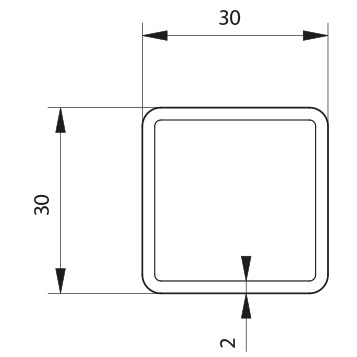

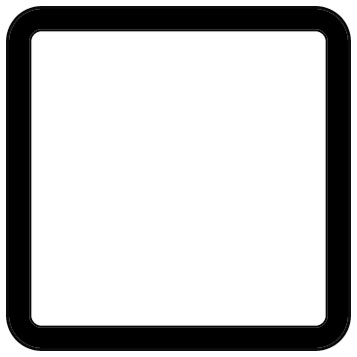

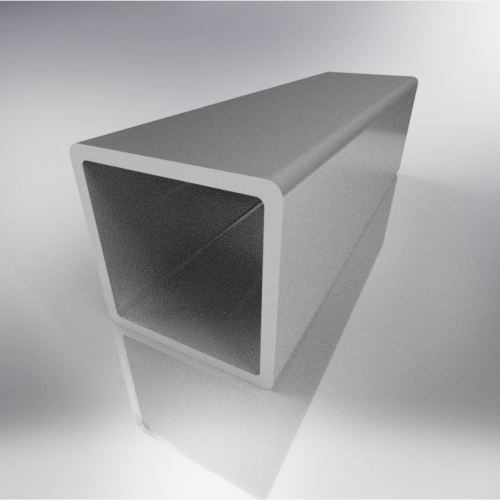

Tubular Profile 30×30

Code:
BTUQE0000004
Old Code:
01.100.00A
Serie:
30
Area:
217 mm2
Bar length:
6050 mm
Materiale:
Alloy EN AW 6060
Modulo di resistenza:
1,86 Wx/cm3 – 1,86 Wx/cm3
Moment of inertia:
2,80 Jx/cm4 – 2,80 Jx/cm4
Weight:
0,586 Kg/ml
0x30 TUBOLARE - BTUQE0000004
Profilo 30×30 tubolare
Profilo 30×30 tubolare
Cad 2D Cad 3D
