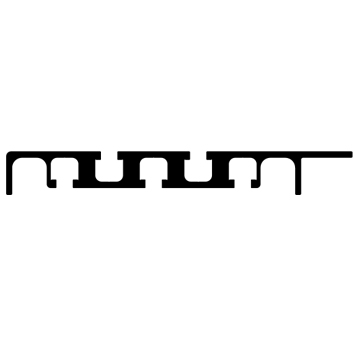

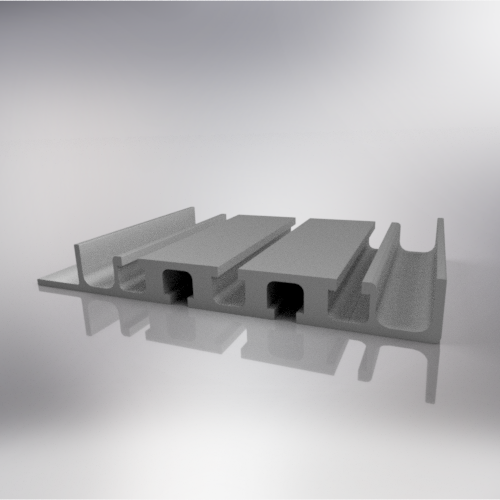

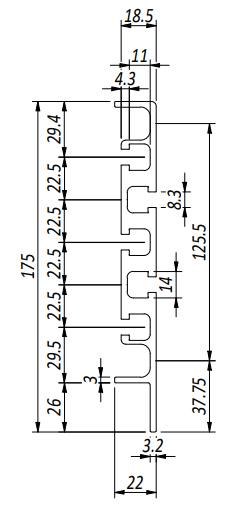

Profile for Conveyors 22x175 Code: BPRDD0000577 Old Code: none Serie: Per Guide Lineari Area: 1415 mm2 Bar length: 6050mm Materiale: Alloy EN AW 6060 Modulo di resistenza: 3,991 Wx/cm3 – 29,528 Wy/cm3 Moment of inertia: 5,53 Jx/cm4 – 281,352 Jy/cm4 Weight: 3,82 kg/ml Cad 2D Cad 3D Profilo guida a V 90° 60x180 Profile 40x160 – 6 light grooves
