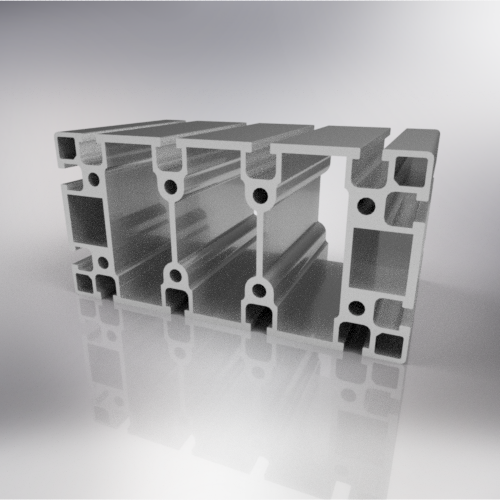

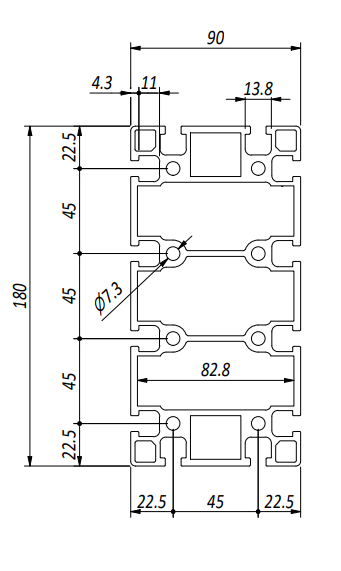

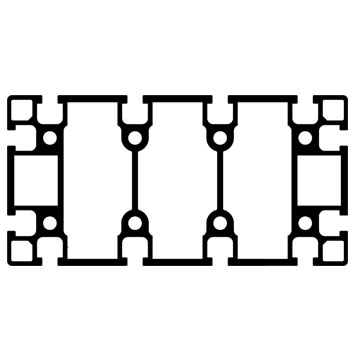

Profile 90x180 – 12 Ways Reinforced Code: BPRDD0000216 Old Code: 01.90180.PL12A Serie: 45 Area: 3874,62 mm2 Bar length: 6040 mm Materiale: Alloy EN AW 6060 Modulo di resistenza: 146,46 Wx/cm3 – 79,41 Wy/cm3 Moment of inertia: 1318,12 Jx/cm4 – 357,34 Jy/cm4 Weight: 10,46 kg/ml Cad 2D Cad 3D Profilo 90×90 – 8 cave angolare Profile 90x180 – 12 Ways
