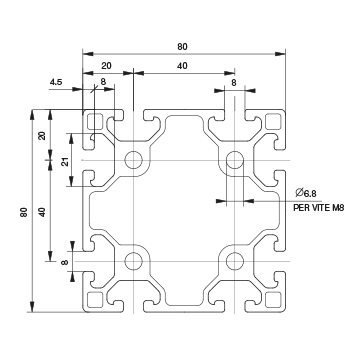

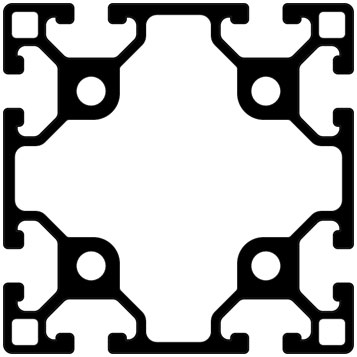

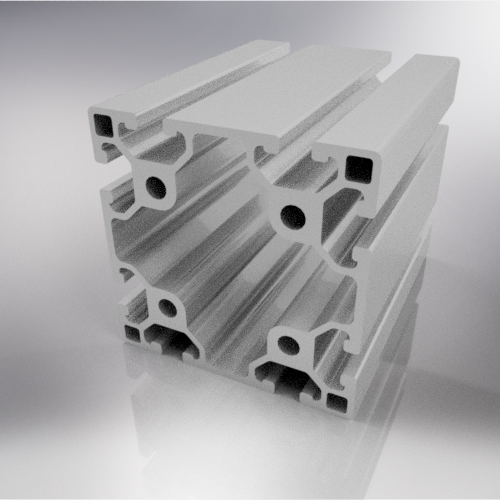

Profile 80x80 – 8 Ways Light

Code:
BPRDD0000211
Old Code:
01.8080.L8A
Serie:
40
Area:
1694 mm2
Bar length:
6100 mm
Materiale:
Alloy EN AW 6060
Modulo di resistenza:
31,190 Wx/cm3 – 31,190 Wy/cm3
Moment of inertia:
124,759 Jx/cm4 – 124,759 Jy/cm4
Weight:
4,574 kg/ml
Profilo 80×80 – 8 cave leggero - BPRDD0000211
Profilo 80×80 – 8 cave leggero
Profilo 80×80 – 8 cave leggero
Cad 2D Cad 3D
