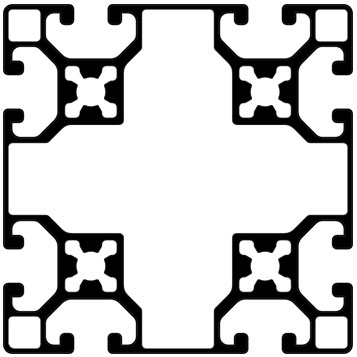

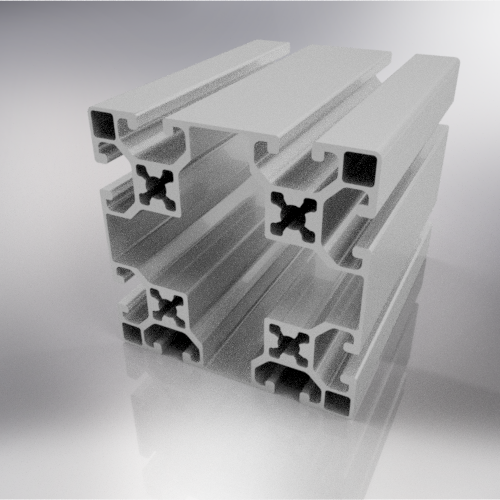

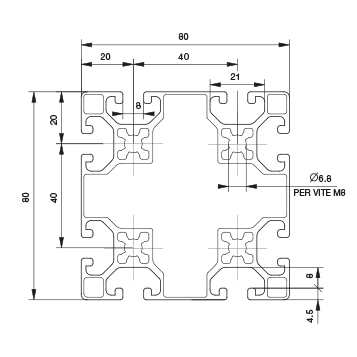

Profile 80x80 – 8 Ways Extra Light Code: BPRDD0000214 Old Code: 01.8080.XL8A Serie: 40 Area: 1424,5 mm2 Bar length: 6100 mm Materiale: Alloy EN AW 6060 Modulo di resistenza: 25,888 Wx/cm3 – 25,888 Wy/cm3 Moment of inertia: 103,553 Jx/cm4 – 103,553 Jy/cm4 Weight: 3,846 kg/ml Cad 2D Cad 3D Profilo 60x60 – 4 cave decentrate Junction plate 40x120
