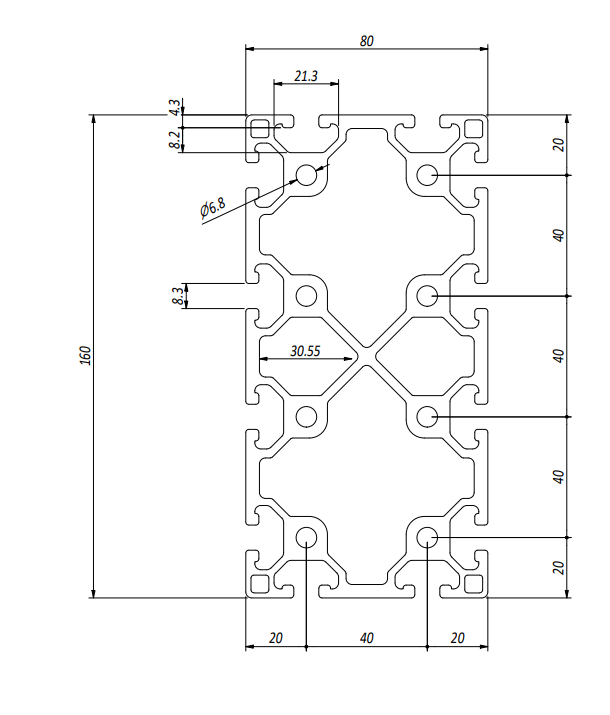

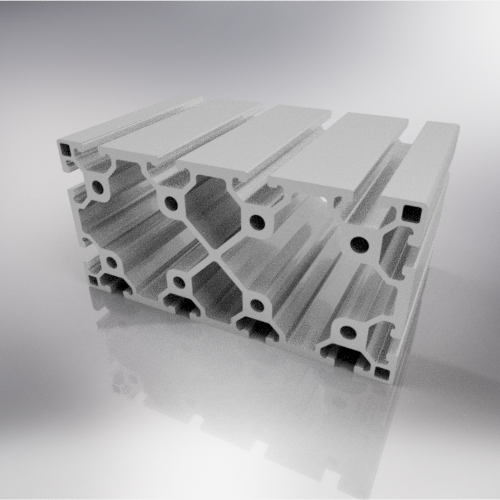

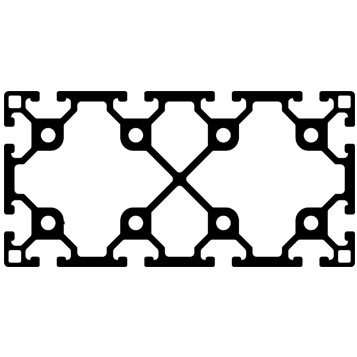

Profile 80x160 – 12 Ways Light

Code:

BPRDD0000209

Old Code:

01.80160.L12A

Serie:

40

Area:

3595 mm2

Bar length:

6100 mm

Materiale:

Alloy EN AW 6060

Modulo di resistenza:

67,541 Wx/cm3 – 112,324 Wy/cm3

Moment of inertia:

270,193 Jx/cm4 – 898,671 Jy/cm4

Weight:

9,707 kg/ml

Profilo 80×160 – 12 cave leggero - BPRDD0000209

Profilo 80×160 – 12 cave leggero

Cad 2D Cad 3D
