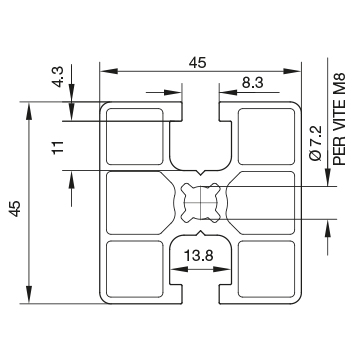

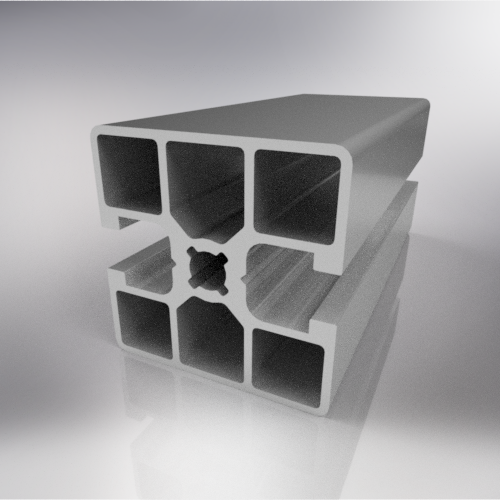

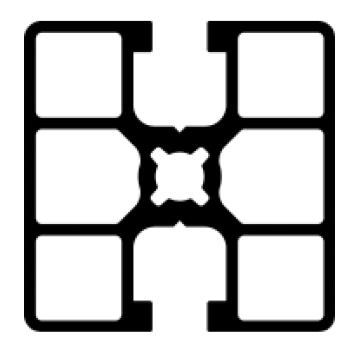

Profile 45x45 – 2 Ways à 180°

Code:

BPRDD0000145

Old Code:

01.4545.L2180A

Serie:

45

Area:

564,51 mm2

Bar length:

6040 mm

Materiale:

Alloy EN AW 6060

Modulo di resistenza:

4,75 Wx/cm3 – 4,76 Wy/cm3

Moment of inertia:

10,68 Jx/cm4 – 10,71 Jy/cm4

Weight:

1,6 kg/ml

Profilo 45×45 – 2 cave a 180° - BPRDD0000145

Profilo 45×45 – 2 cave a 180°

Profilo 45×45 – 2 cave a 180°

Cad 2D Cad 3D

Profilo 45x45 – 2 cave

Profile 45x45 – 3 Ways Light
