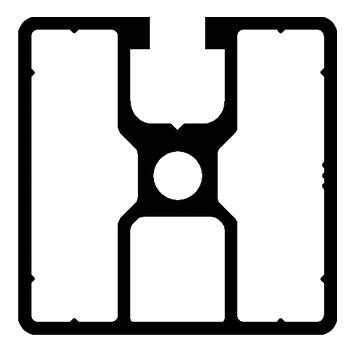

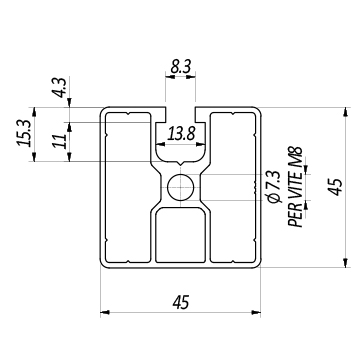

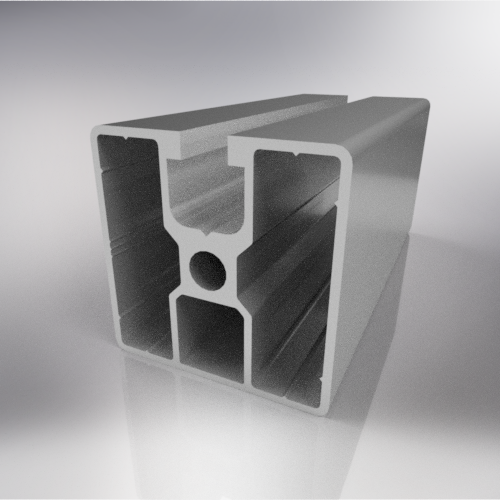

Profile 45x45 – 1 Way Light Code: BPRDD0000140 Old Code: 01.4545.L1A Area: 465 mm2 Bar length: 6040 mm Materiale: Alloy EN AW 6060 Modulo di resistenza: 4,4 Wx/cm3 – 3,94 Wy/cm3 Moment of inertia: 10,10 Jx/cm4 – 8,87 Jy/cm4 Weight: 1,256 kg/ml Cad 2D Cad 3D Profilo 45x45 chiuso Profile 45x45 – 2 Ways Light
