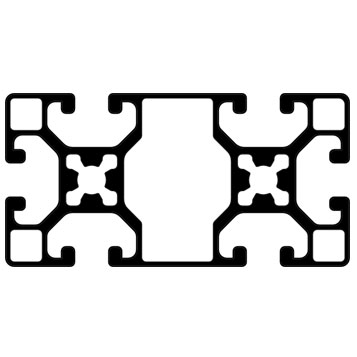

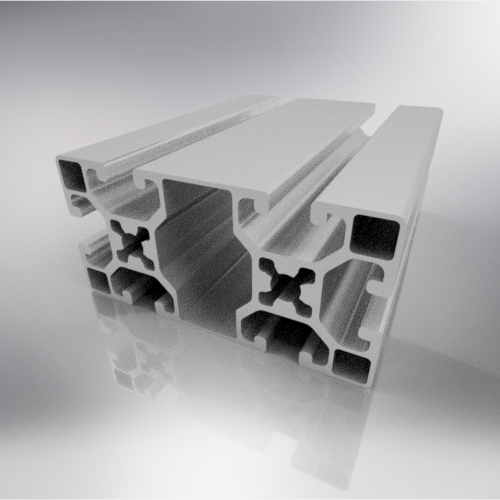

Profile 40x80 – 6 Ways Extra Light Code: BPRDD0000122 Old Code: 01.4080.XL6A Serie: 40 Area: 901 mm2 Bar length: 6100 mm Materiale: Alloy EN AW 6060 Modulo di resistenza: 7,576 Wx/cm3 – 14,921 Wy/cm3 Moment of inertia: 15,151 Jx/cm4 – 59,684 Jy/cm4 Weight: 2,432 kg/ml Cad 2D Cad 3D Cuscinetto 618/8 sp.4 D.E. 16 D.I. 8 (ISB) Perno maschio per ruota
