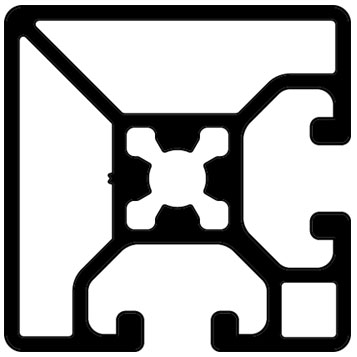

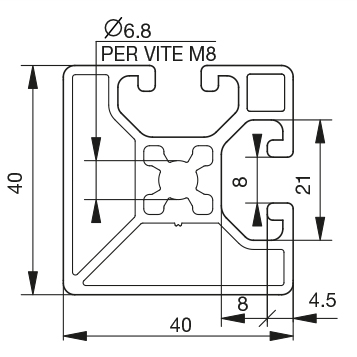

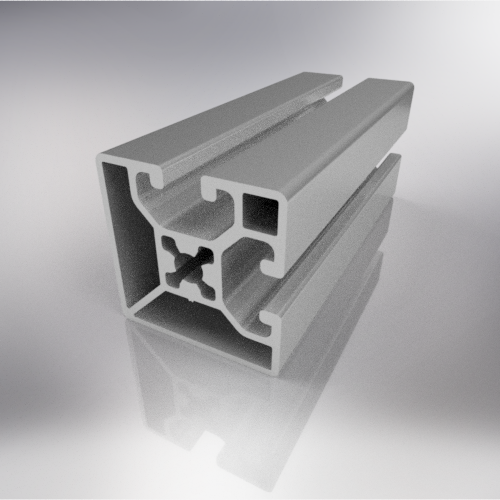

Profile 40x40 – 2 Ways Extra Light Code: BPRDD0000099 Old Code: 01.4040.XL2A Serie: 40 Area: 491 mm2 Bar length: 6100 mm Materiale: Alloy EN AW 6060 Modulo di resistenza: 3,849 Wx/cm3 – 3,852 Wy/cm3 Moment of inertia: 7,852 Jx/cm4 – 7,855 Jy/cm4 Weight: 1,326 kg/ml Cad 2D Cad 3D Collarino per giunzione 25-1V Profile 40x40 – 3 Ways Extra Light
