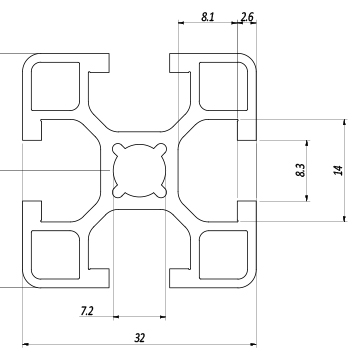

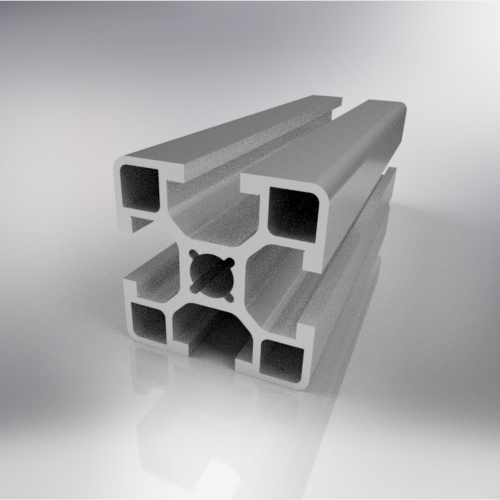

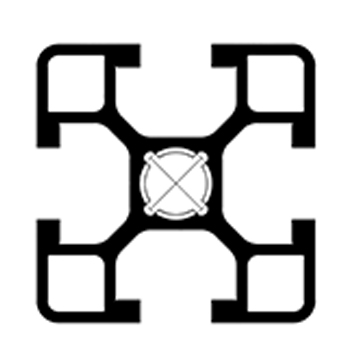

Profile 32x32 – 4 Ways Code: BPRDD0000436 Serie: 45 Area: 300,328 mm2 Bar length: 6040 mm Materiale: Alloy EN AW 6060 Modulo di resistenza: 1,864 Wx/cm3 – 1,864 Wy/cm3 Moment of inertia: 2,983 Jx/cm4 – 2,983 Jy/cm4 Weight: 0,811 kg/ml Cad 2D Cad 3D Profilo 18,5x180 – 9 cave pesante Profile 32x32 – 2 Ways
