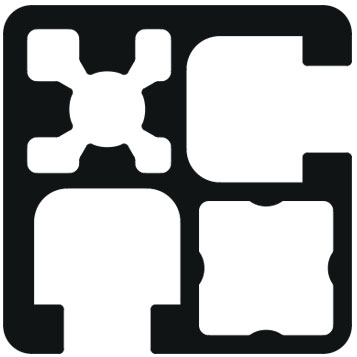

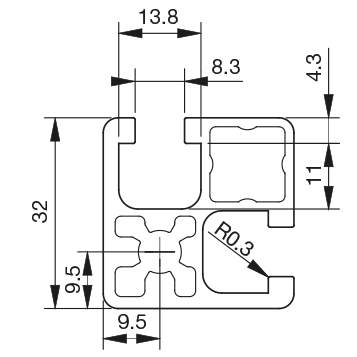

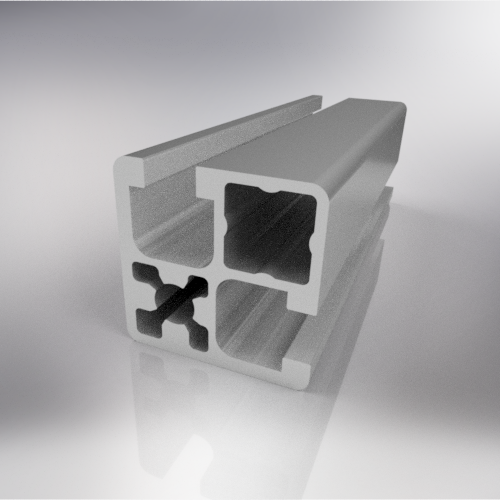

Profile 32×32 – 2 Ways light Code: BPRDD0000076 Old Code: 01.3232.L2A Serie: 45 Area: 382 mm2 Bar length: 6040 mm Materiale: Alloy EN AW 6060 Modulo di resistenza: 2,458 Wx/cm3 – 2,581 Wy/cm3 Moment of inertia: 3,933 Jx/cm4 – 4,130 Jy/cm4 Weight: 1,031 kg/ml Cad 2D Cad 3D Profilo 32x32 – 2 cave Profile 32x32 – 2 Ways radial
