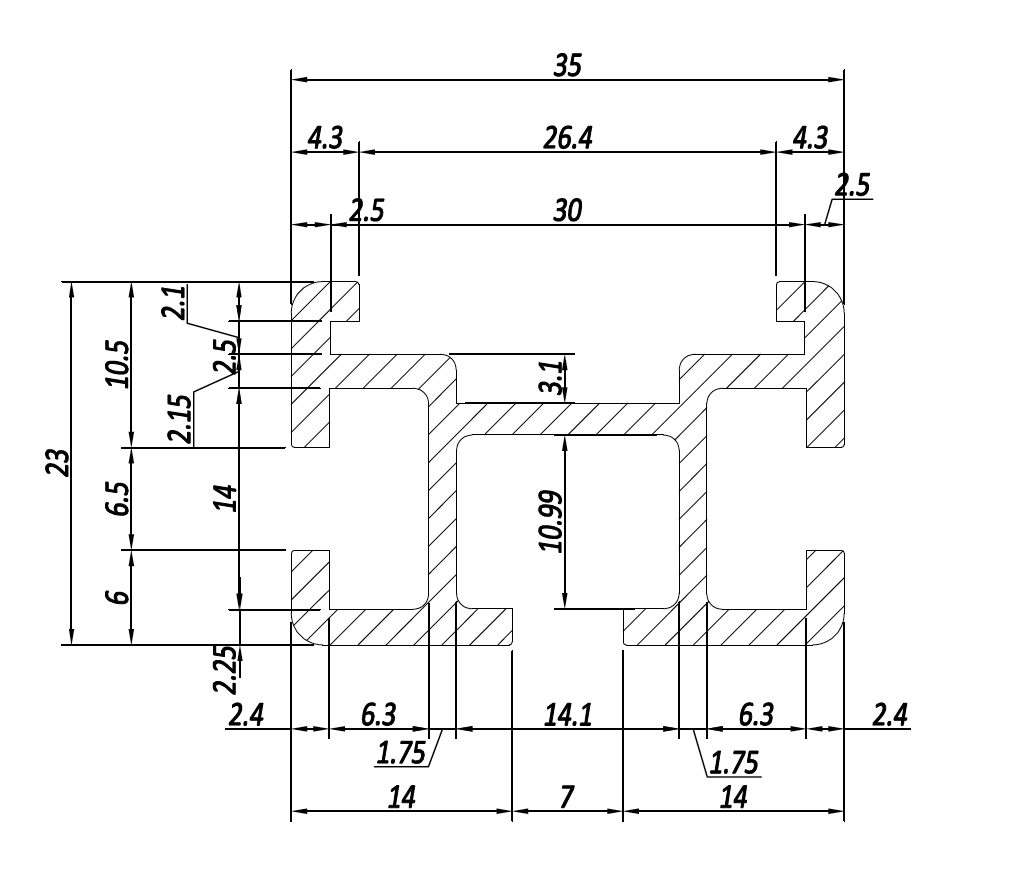

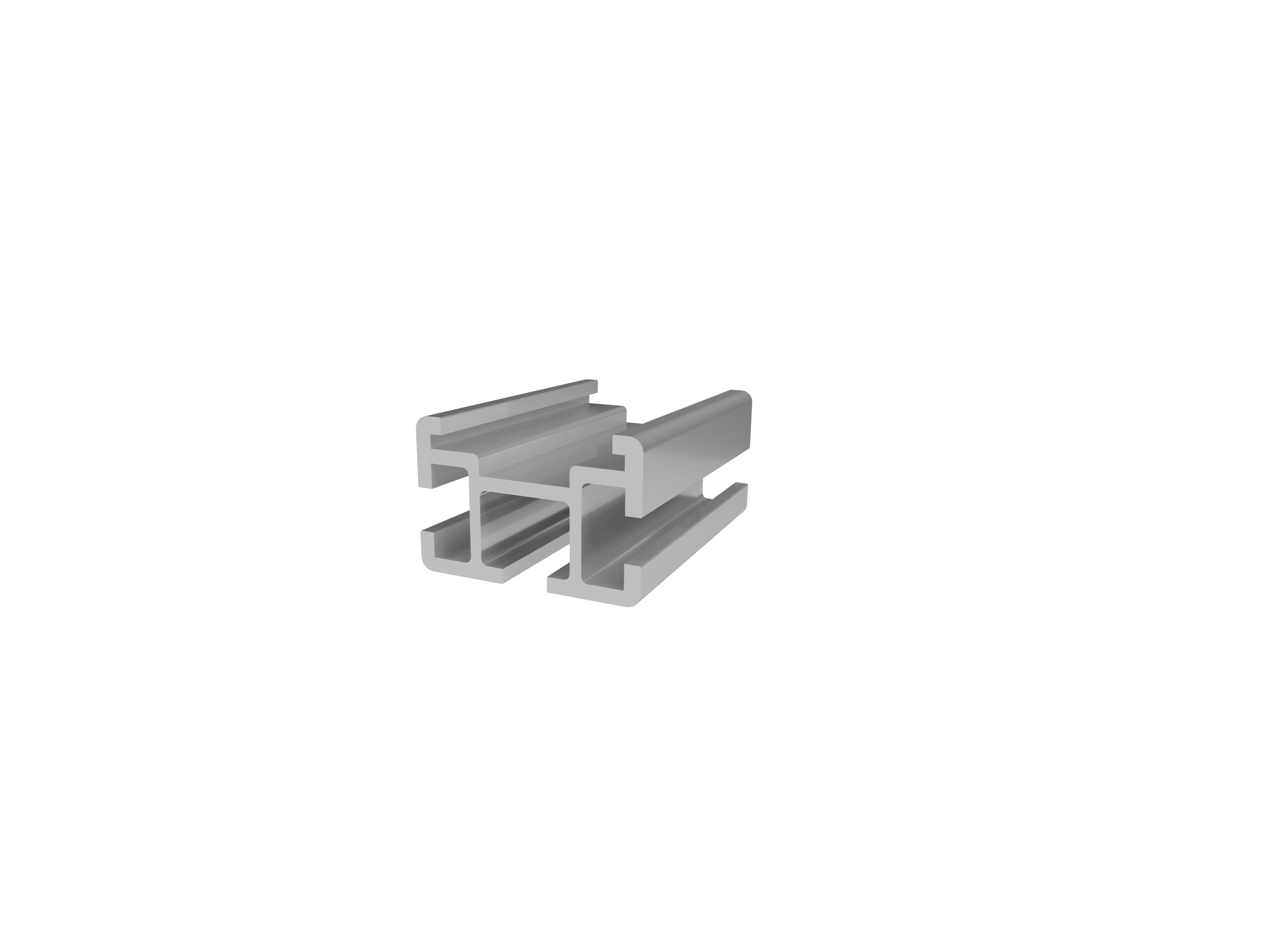

profile 23x35 3 cave for toothed belts width 25mm Code: BPRDD0000039 Old Code: none Serie: Complementari Area: 255,76 mm2 Bar length: 6040 mm Materiale: LEGA EN AW 6060 Modulo di resistenza: 1,15 Wx/cm3 – 1,99 Wy/cm3 Moment of inertia: 1,32 Jx/cm4 – 3,49 Jy/cm4 Weight: 0,750 kg/ml Cad 2D Cad 3D Piastra di fissaggio scorrevole Profile for roller conveyor belts Ø 50 SP = 4 5 holes int. 35
