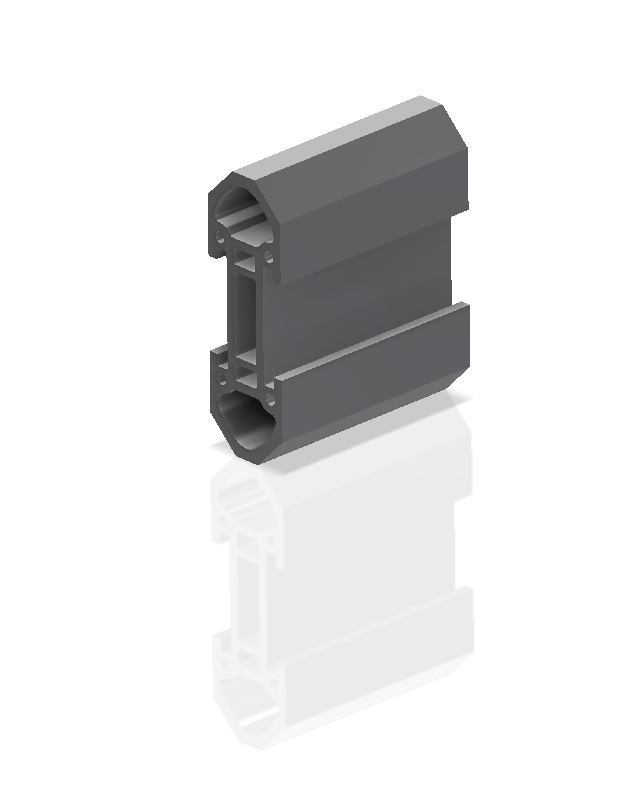

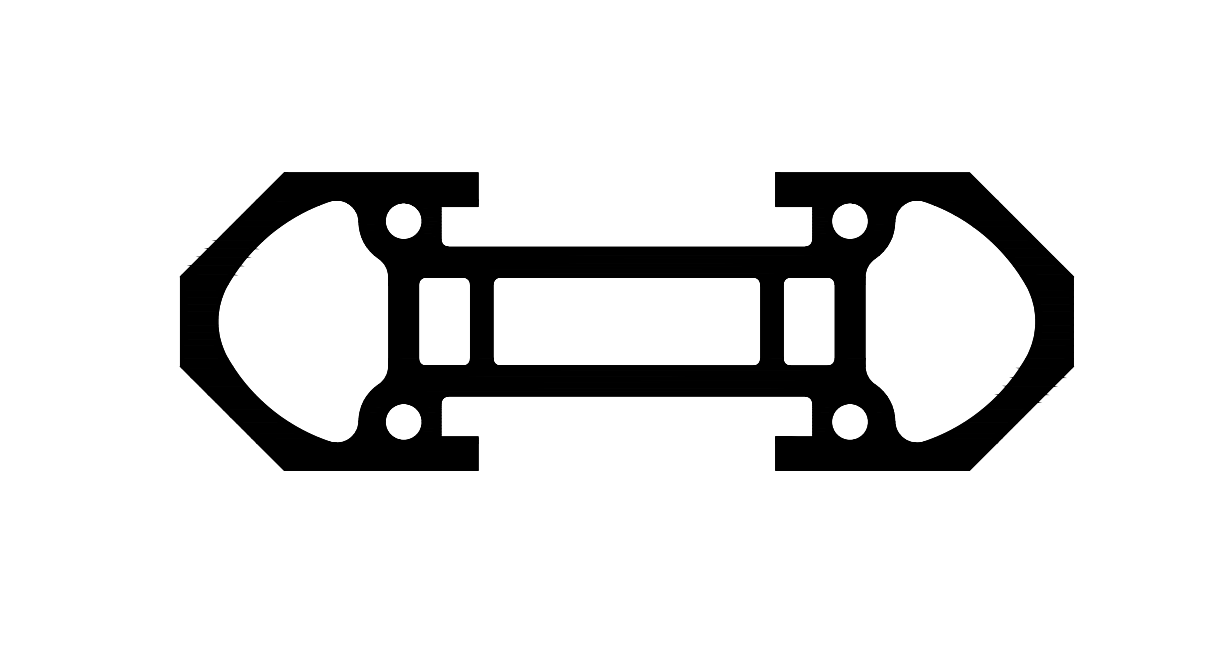

Monorail Plus 120 profile
Description:

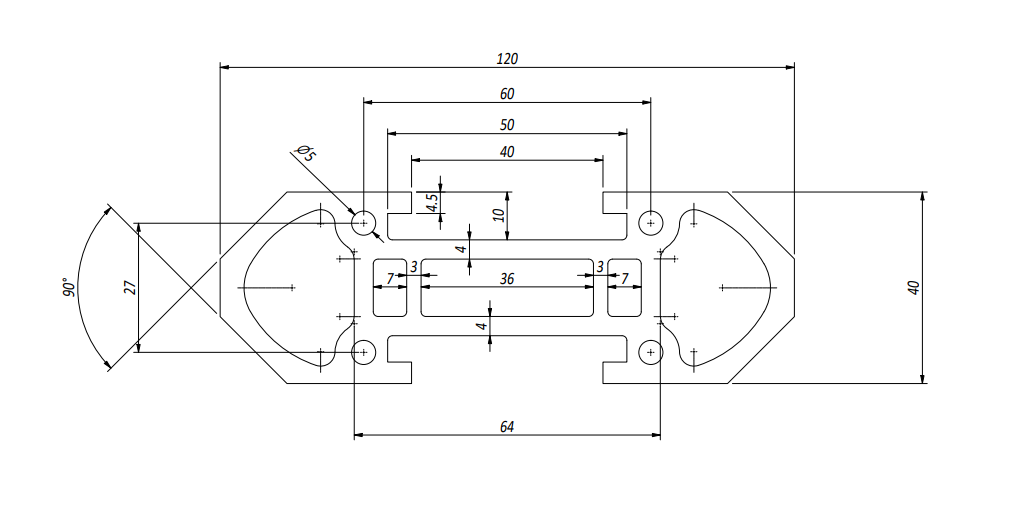

ENCUMBRANCE: y 40mm / z 120mm
Code:
BPRGD0000136
Serie:
Per Guide Lineari
Area:
1751.00 mm2
Bar length:
6000 mm
Materiale:
LEGA EN AW 6060
Modulo di resistenza:
36.70 Wz/cm3 – 12.70 Wy/cm3
Moment of inertia:
220.60 Jz/cm4 – 25.40 Jy/cm4
Weight:
4.72 kg/ml
