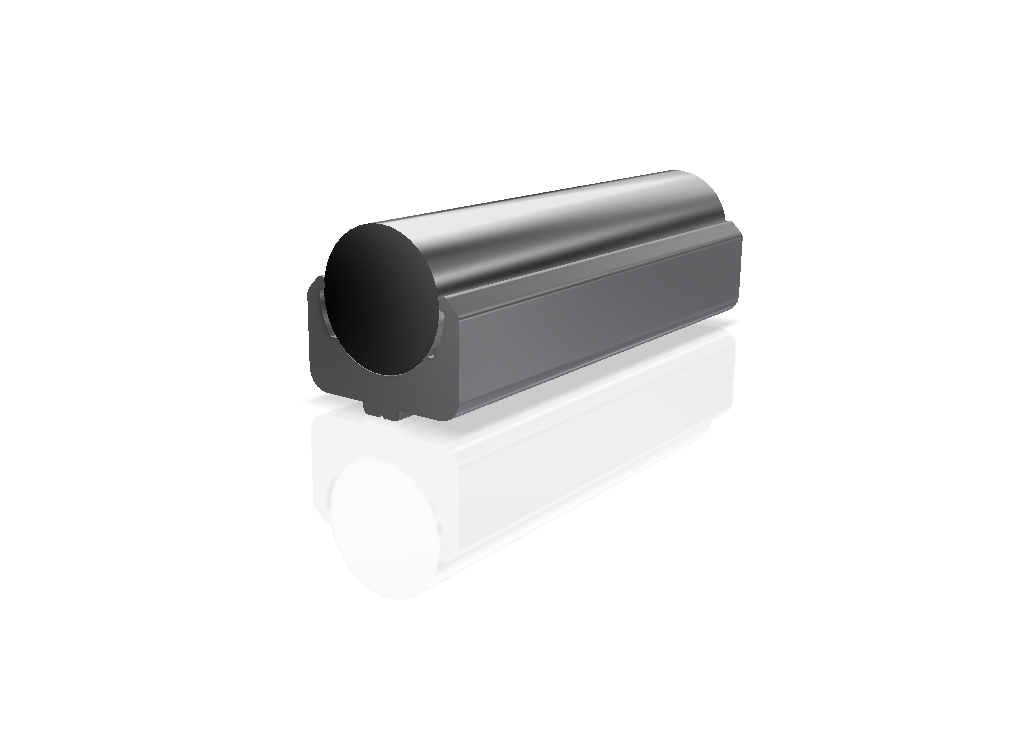

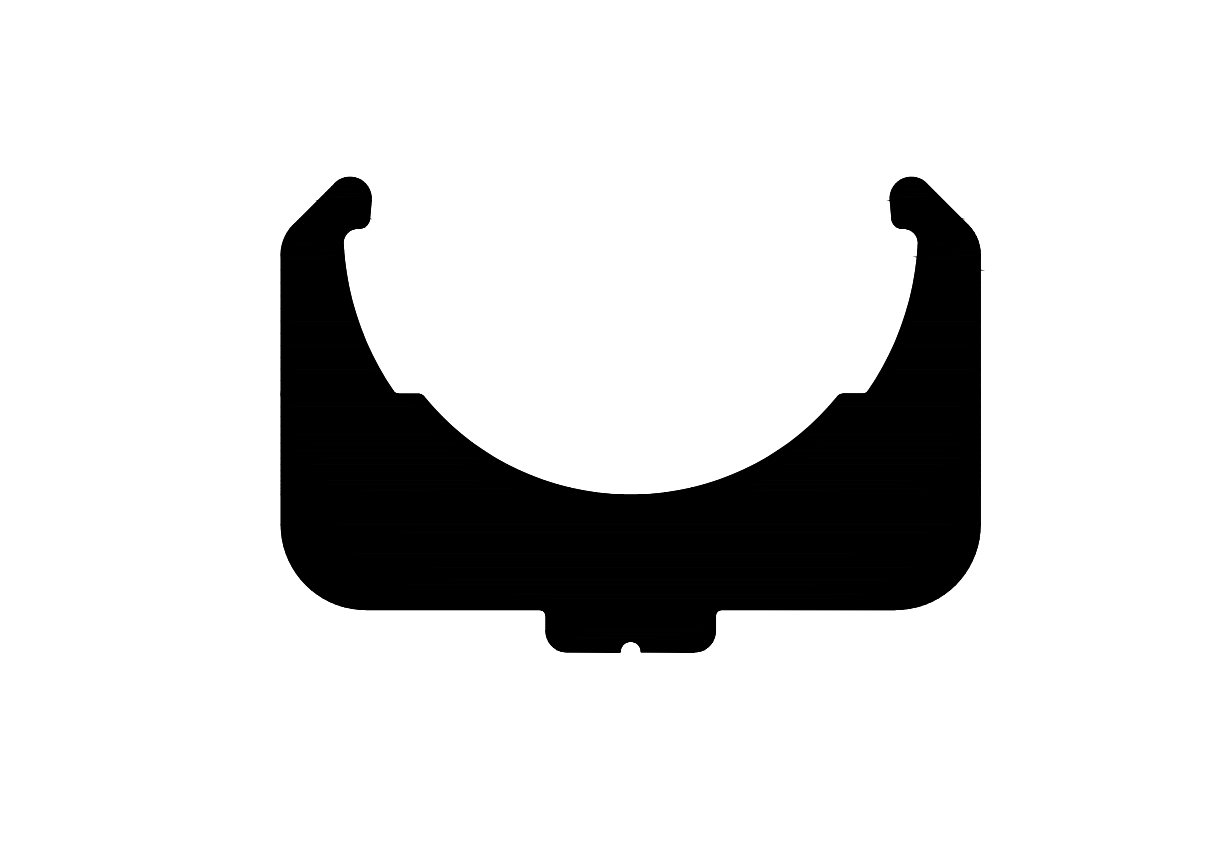

Linear guide profile - Round containment profile ø25
Description:

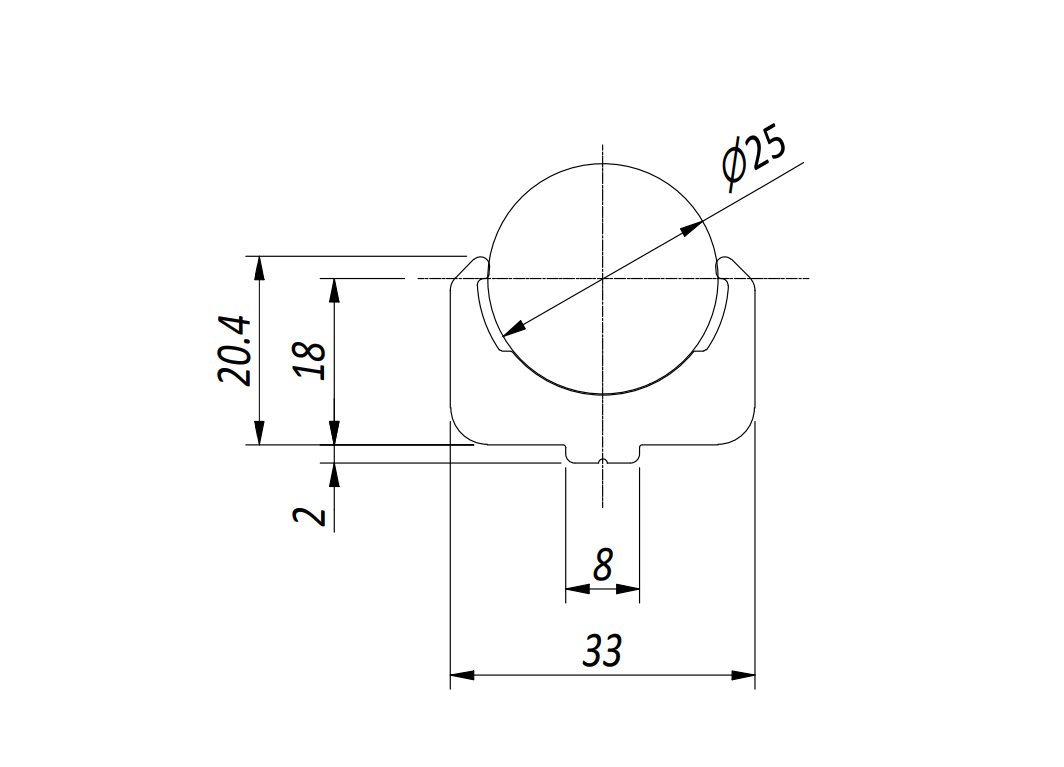

ENCUMBRANCE: y 33.00mm / z 32.50mm
Code:
BPRGD0000022
Serie:
Per Guide Lineari
Area:
348.00 mm2
Bar length:
6100 mm
Materiale:
LEGA EN AW 6060 C50 temp./rett./chrome
Modulo di resistenza:
2.585 Wz/cm3 – 0.462 Wy/cm3
Moment of inertia:
4.259 Jz/cm4 – 0.924 Jy/cm4
Weight:
0.939 kg/ml
