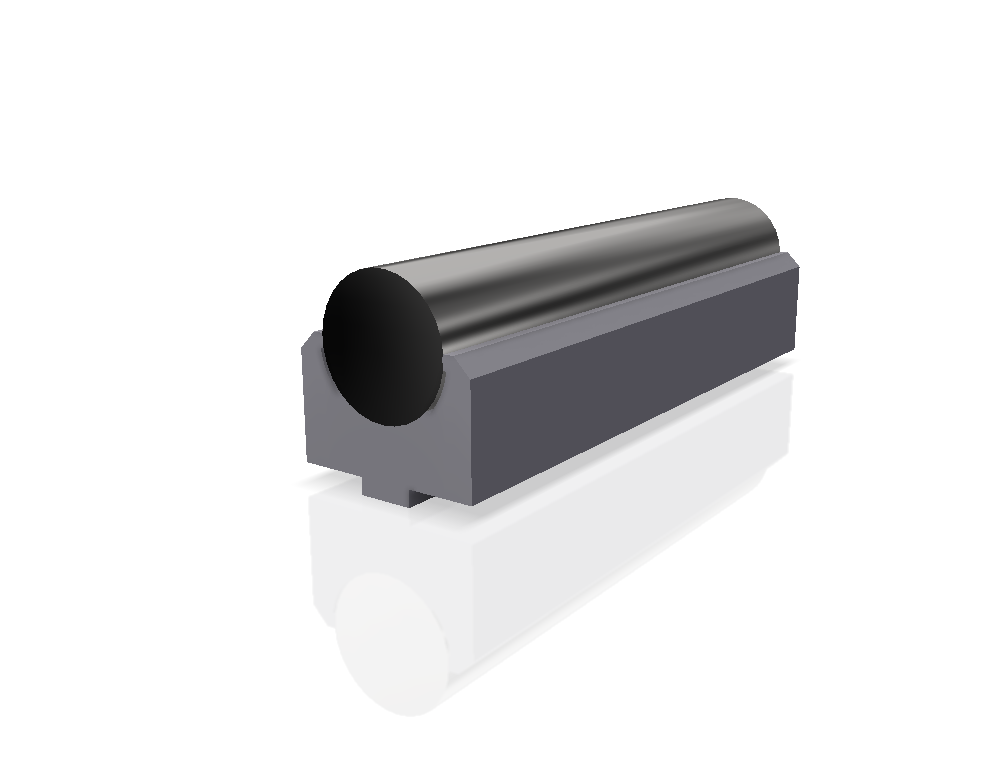

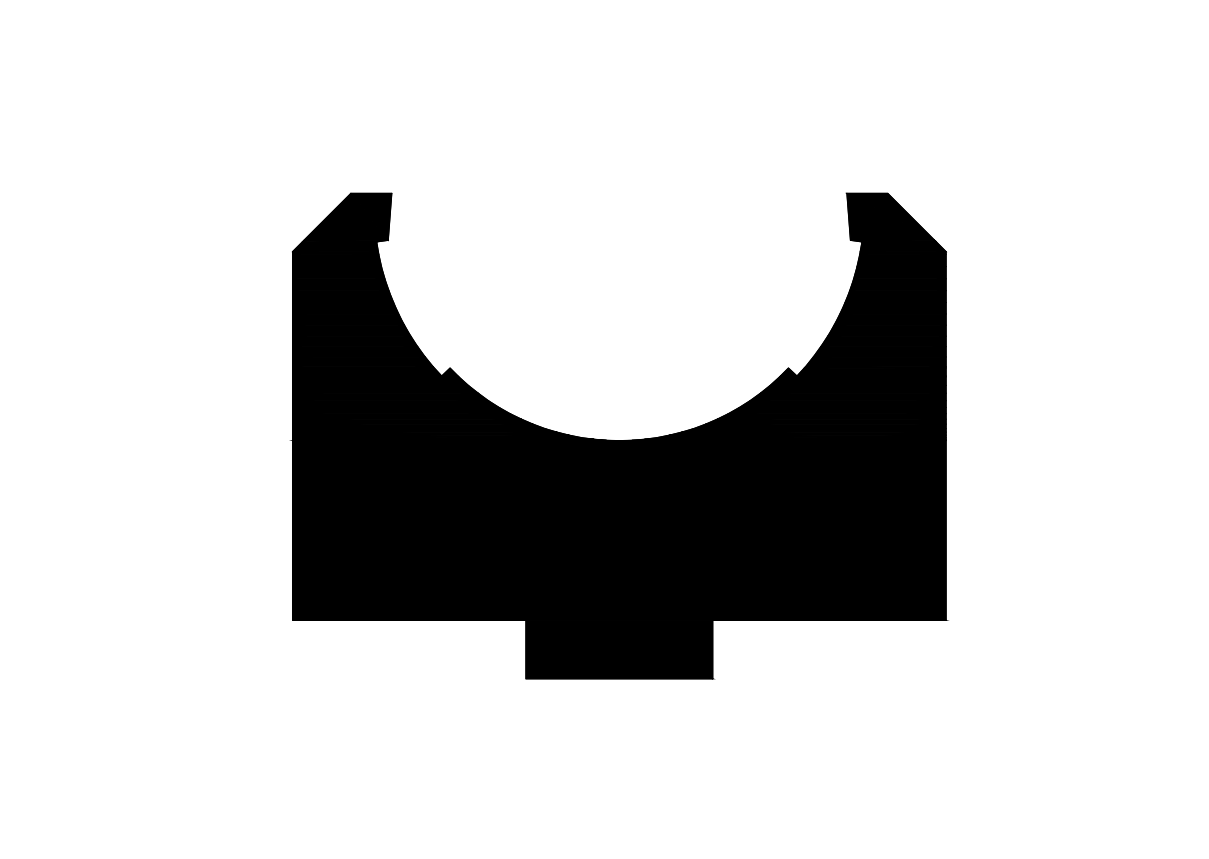

Linear guide profile - Round containment profile ø20
Description:

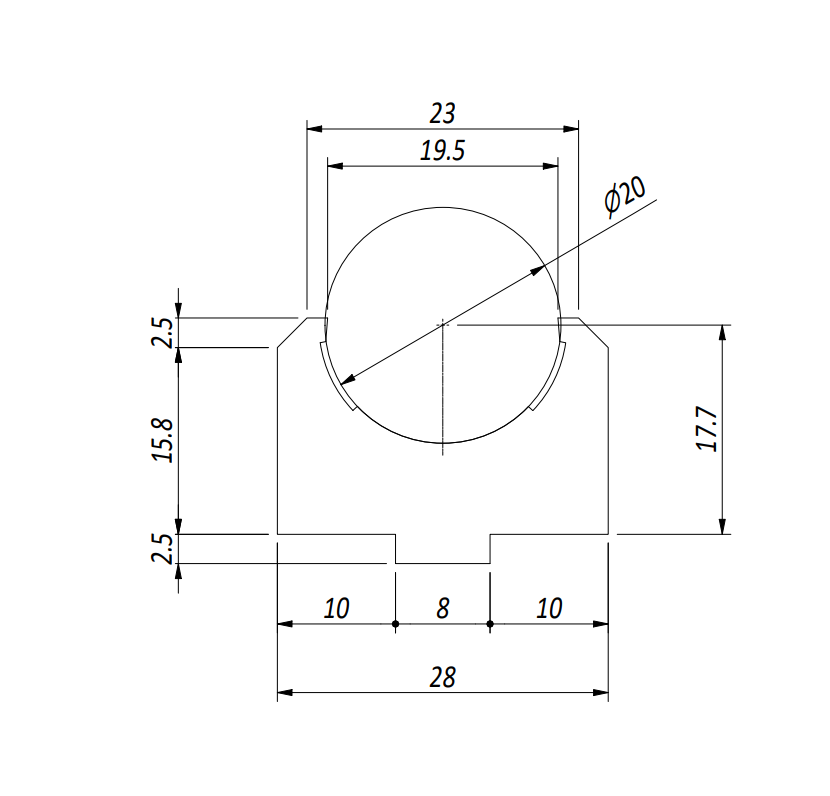

ENCUMBRANCE : y 28.00mm / z 28.00mm
Code:
BPRGD0000102
Serie:
Per Guide Lineari
Area:
3,513 mm2
Bar length:
6050 mm
Materiale:
LEGA EN AW 6060 C50 temp./rett./chrome
Modulo di resistenza:
0,64 Wz/cm3 – 1,978 Wy/cm3
Moment of inertia:
0,778 Jz/cm4 – 2,77 Jy/cm4
Weight:
0,949kg/ml
