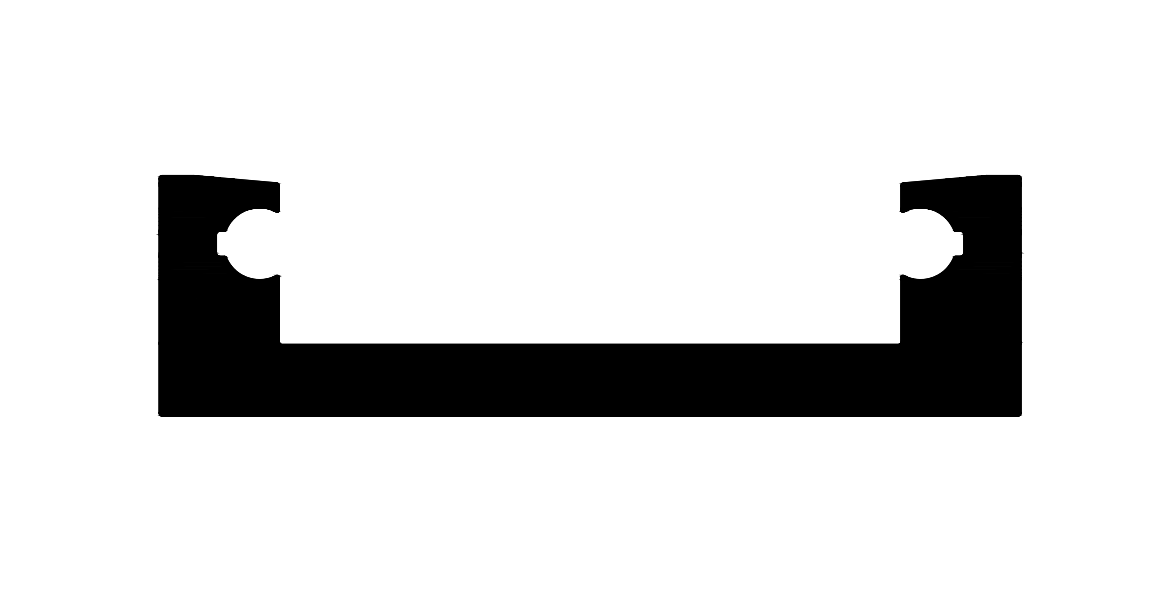

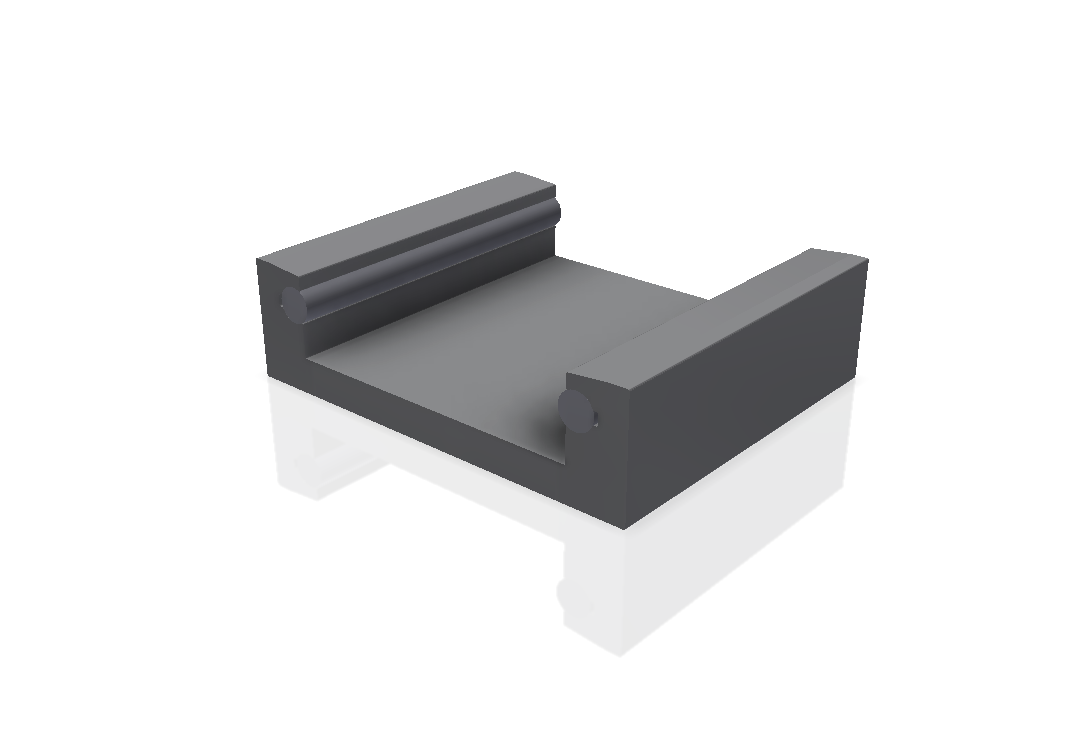

Linear guide profile - IL120
Description:

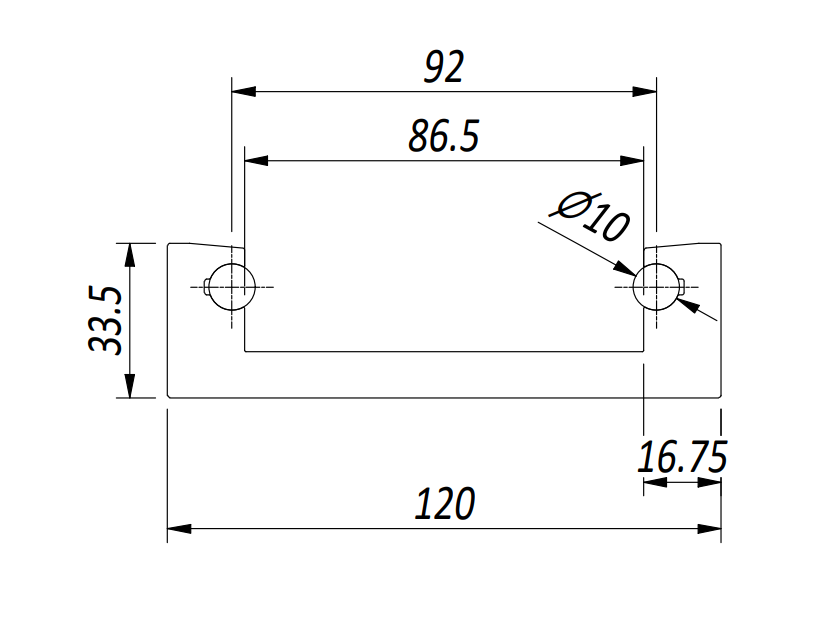

ENCUMBRANCE: y 120.00mm / z 35.50mm
Code:
BPRGD0000010
Serie:
Per Guide Lineari
Area:
1993.21 mm2
Bar length:
6000 mm
Materiale:
LEGA EN AW 6060 C50 temp./rett./chrome
Modulo di resistenza:
59.25 Wz/cm3 – 7.36 Wy/cm3
Moment of inertia:
335.48 Jz/cm4 – 17.67 Jy/cm4
Weight:
6.19 kg/ml
