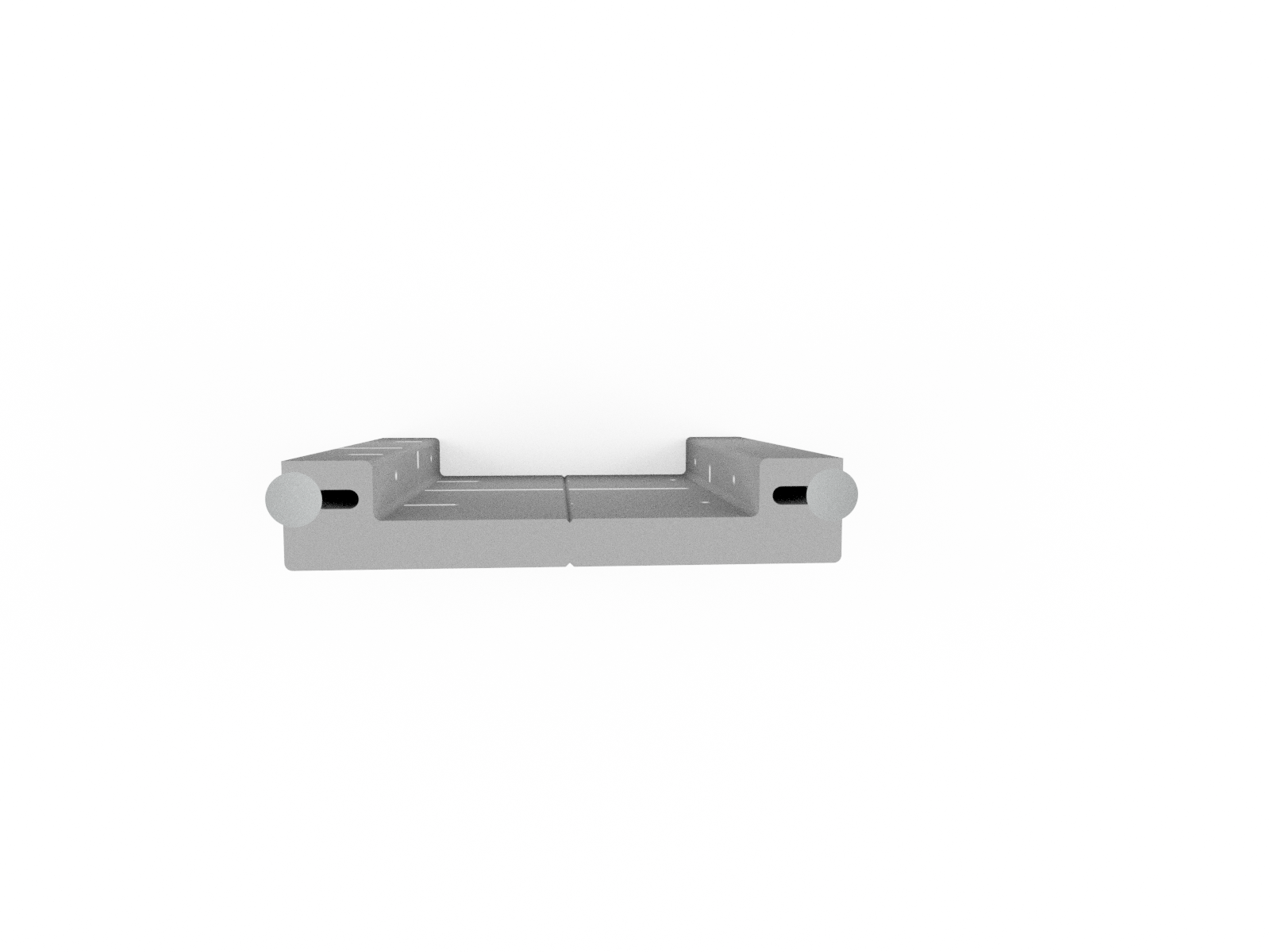

Linear guide profile - GDX10
Description:

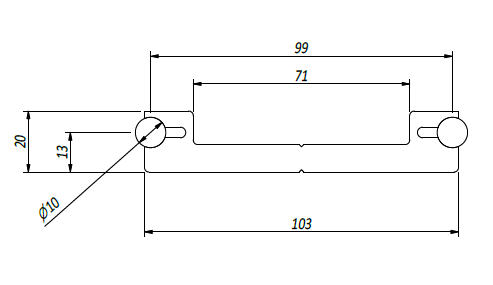

ENCUMBRANCE: y109.00mm / z 20.00mm
Code:
BPRGD0000065
Serie:
Per Guide Lineari
Area:
1290,96 mm2
Bar length:
6000 mm
Materiale:
LEGA EN AW 6060 C50 temp./rett./chrome
Modulo di resistenza:
31,45 Wz/cm3 – 2,76 Wy/cm3
Moment of inertia:
155,36 Jz/cm4 – 3,58 Jy/cm4
Weight:
4,31 kg/m
