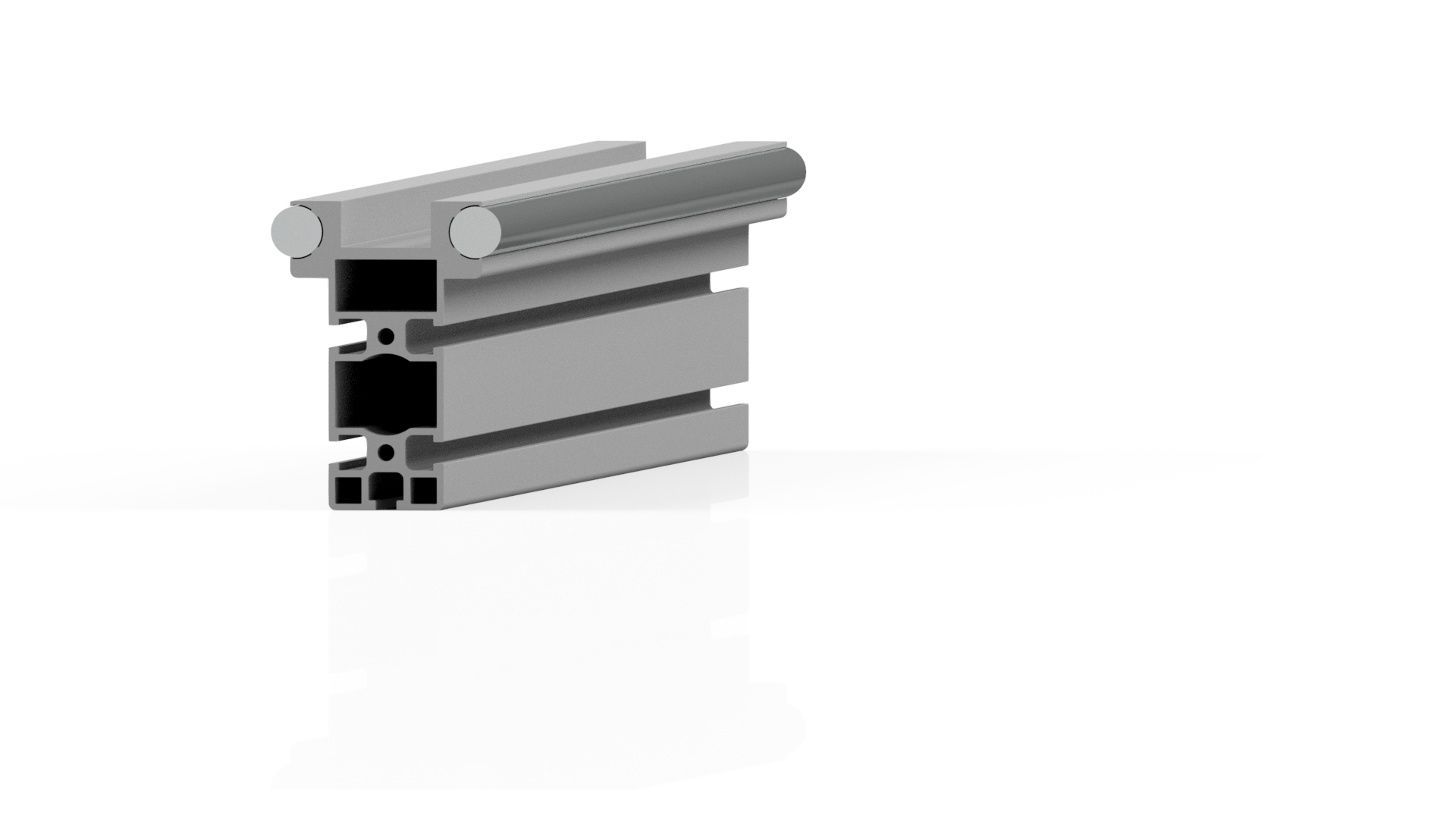

Linear guide profile - GDR20
Description:

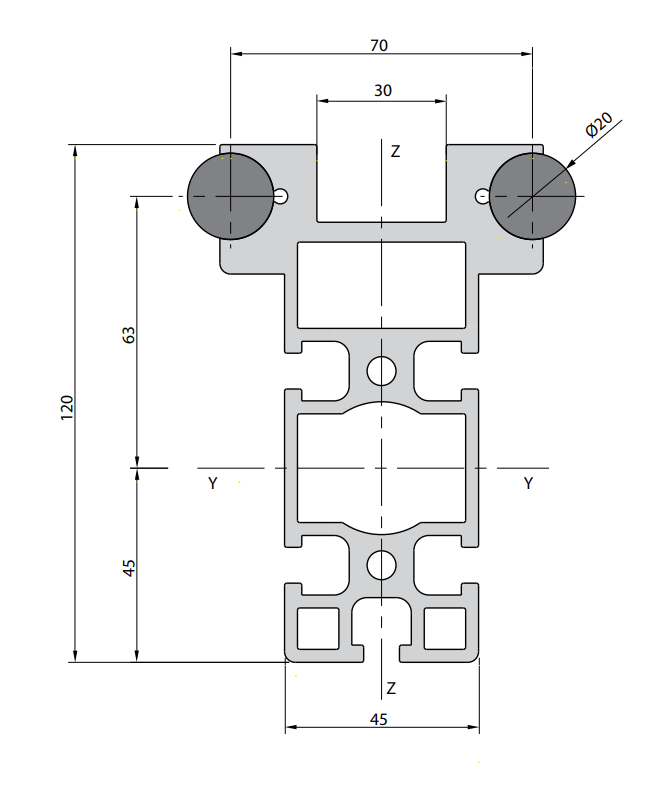

ENCUMBRANCE : y 90.00mm / z 120.00mm
Code:
BPRGD0000028
Serie:
Per Guide Lineari
Area:
2965.38 mm2
Bar length:
6040 mm
Materiale:
LEGA EN AW 6060 C50 temp./rett./chrome
Modulo di resistenza:
35.69 Wz/cm3 – 68.47 Wy/cm3
Moment of inertia:
160.62 Jz/cm4 – 413.54 Jy/cm4
Weight:
11.27 kg/ml
