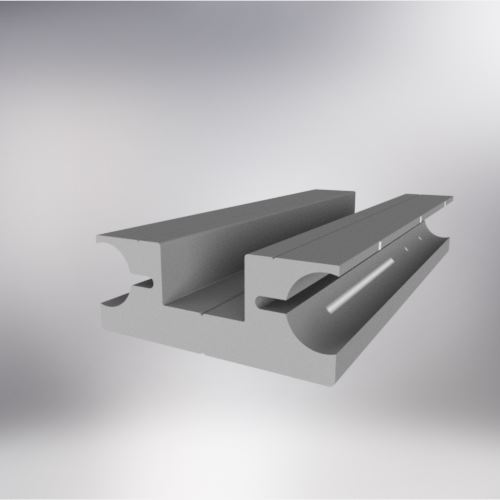

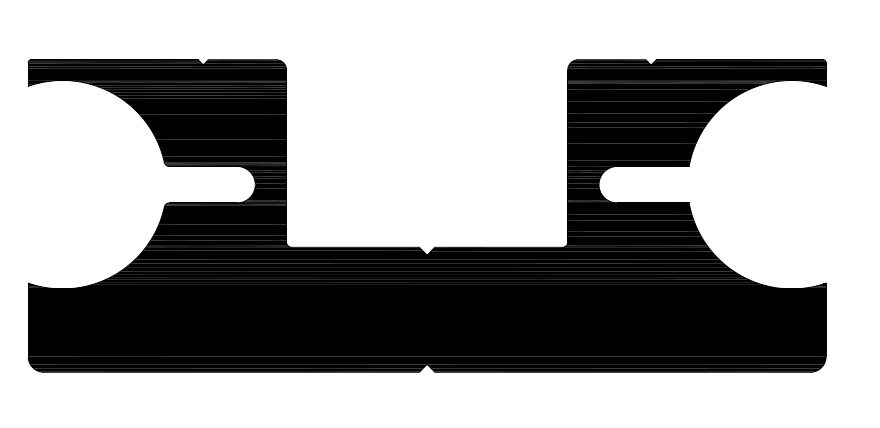

Linear guide profile - GD20
Description:

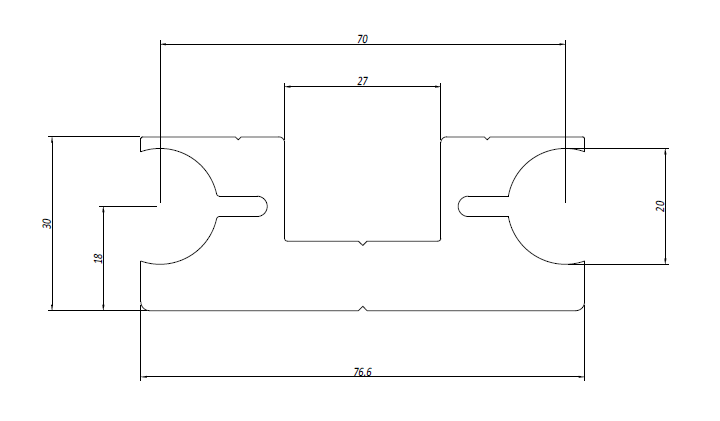

ENCUMBRANCE: y 90.00mm / z 30.00mm
Code:
BPRGD0000062
Serie:
Per Guide Lineari
Area:
2018,23 mm2
Bar length:
6000 mm
Materiale:
LEGA EN AW 6060 C50 temp./rett./chrome
Modulo di resistenza:
2,40 Wz/cm3 – 0,46 Wy/cm3
Moment of inertia:
136,23 Jz/cm4 – 14,97 Jy/cm4
Weight:
8,70 kg/ml
