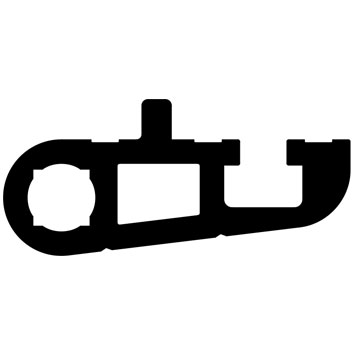

Hinge Profile gola 8 hole Ø 12 hole Ø 10

Code:
BPRCR0000002
Old Code:
01.CR01.00A
Serie:
Complementari
Area:
617,97 mm2
Bar length:
6000 mm
Materiale:
Alloy EN AW 6060
Modulo di resistenza:
1,49 Wx/cm3 – 4,00 Wy/cm3
Moment of inertia:
2,54 Jx/cm4 – 17,95 Jy/cm4
Weight:
1,687 Kg/ml

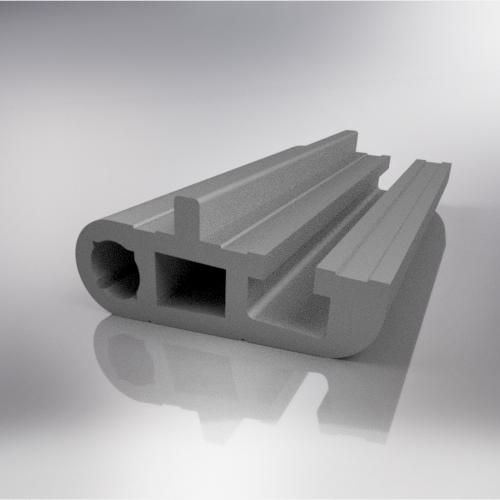

Profilo cerniera gola 8 foro Ø 12 foro Ø 10 - BPRCR0000002
Profilo cerniera gola 8 foro Ø 12 foro Ø 10
Profilo cerniera gola 8 foro Ø 12 foro Ø 10

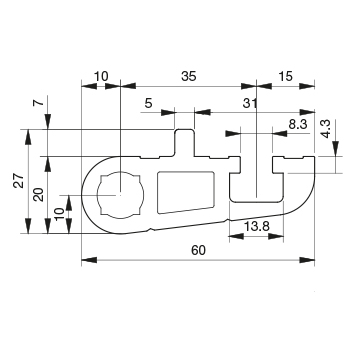

Cad 2D Cad 3D
