Easy Line

FRAMED PROTECTIONS

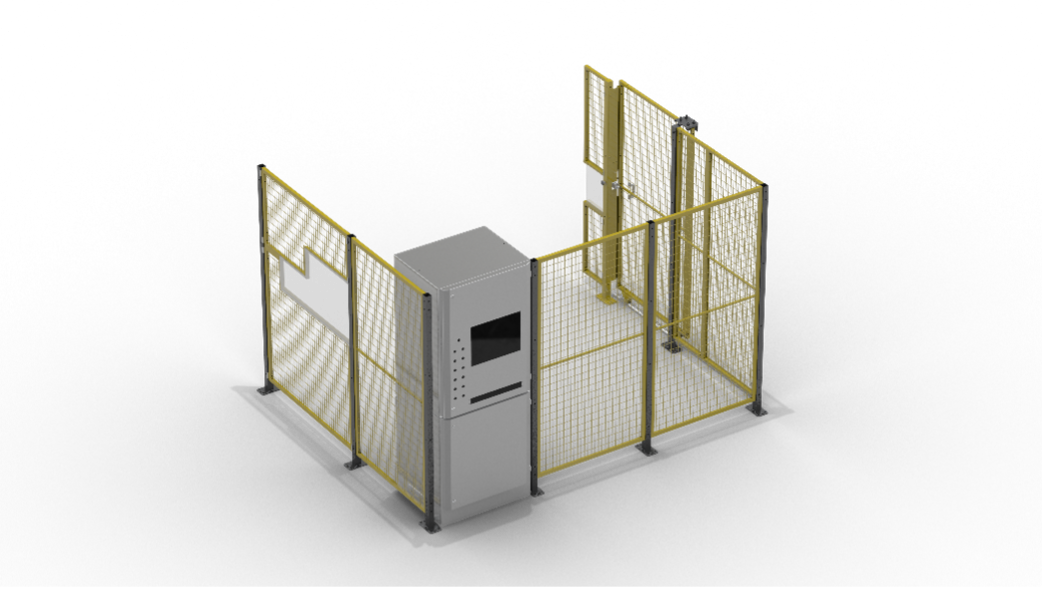

Panels with profile frame for 11A windows with electro-welded mesh in the inner part, supported by square-section tubular posts. This type of protection is used both in normal situations (plants, machines, warehouses) and harsh conditions such as for the robotic and steel industry.

EASY TO HANDLE

With a solid structure and low weight, EASYK series panels are easily handled by one person.

EASY TO ASSEMBLE

With the pre-drilled frame it’s easy to compose the layout desired using simple screws, without having to adapt the elements on site.

STURDY AND ELEGANT

The profile structure for 11A windows and the welded mesh in the hidden part of the panel ensure a very high resistance to internal shocks and a clean, attractive design.

SAFE

(EN ISO 13857) - (EN ISO 14120-5.18) The 32x64 mm mesh allows for the installation of guards 200 mm from the danger zone. Externally welded vertical wires prevent climbing.

VISIBLE

(EN ISO 14120-5.9) The vertical orientation of the mesh and the standard black colour improve visibility within the danger zone.

MODULAR

The standardised dimensions of our posts and panels allow complex layouts to be created using stock material available within a few days.
