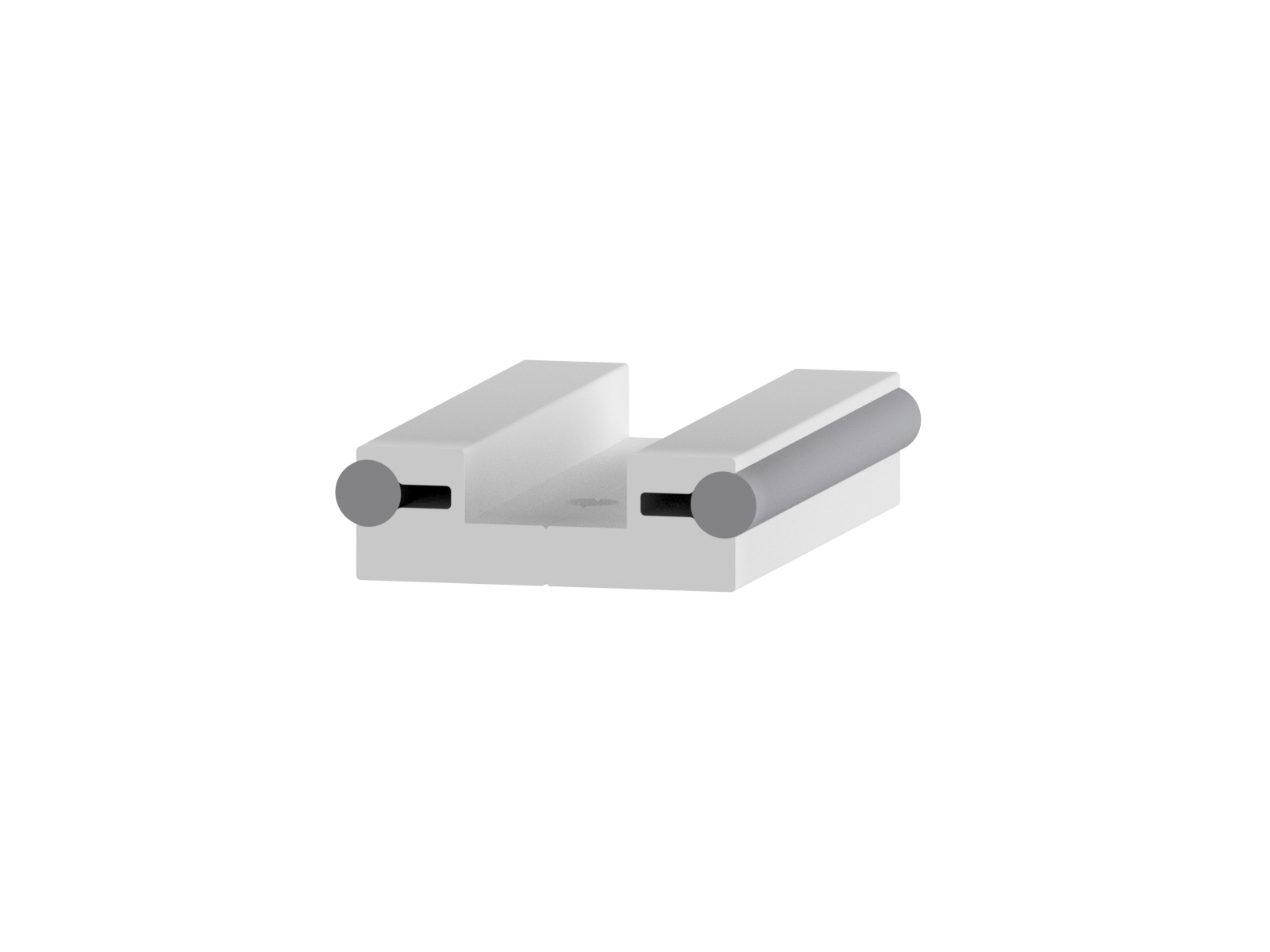

driven wheel linear systems - GDX20
Description:

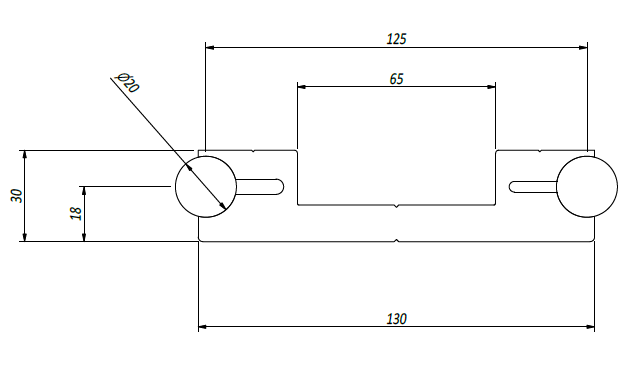

ENCUMBRANCE: y 145mm / z 30.00mm
Code:
BPRGD0000009
Serie:
Per Guide Lineari
Area:
2790.26mm2
Bar length:
6000 mm
Materiale:
LEGA EN AW 6060 C50 temp./rett./chrome
Modulo di resistenza:
92.98 Wz/cm3 – 11.51Wy/cm3
Moment of inertia:
575.74 Jz/cm4 –20.64 Jy/cm4
Weight:
10.87 kg/m
